Seco Turning Insert C Shape Code 3.97 x | AIMS Industrial

***Illustrations shown may vary from actual product***

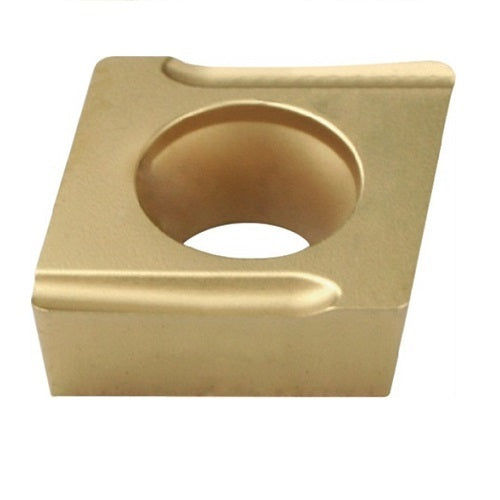

Seco Turning Insert C Shape Code 2.38 x 0.4 x 6.35mm T Insert Type - UX Left 7° Grade CP500 ± 0.05/± 0.025mm CCGT060204L-UX Pack of 10

Turning Insert C Shape Code T Insert Type - UX 7° Grade CP500

• C shape code.
• T Insert Type.
• 7° insert side clearance angles.

CP500 Insert Grade

• PVD Coated
• Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
• Especially suitable in intermittent cuts.
• (Ti,Al)N + TiN

UX Chipbreaker Programme

• Chipbreaker for positive inserts. Smooth and easy chip flow on finishing and medium roughing in steel and stainless steel. Well suited for slim components.
• Indicative machining range: f = 0,05–0,40 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
