Seco CCGT09T301-F1 Turning Insert CP500
The price shown is for the pack.
Available

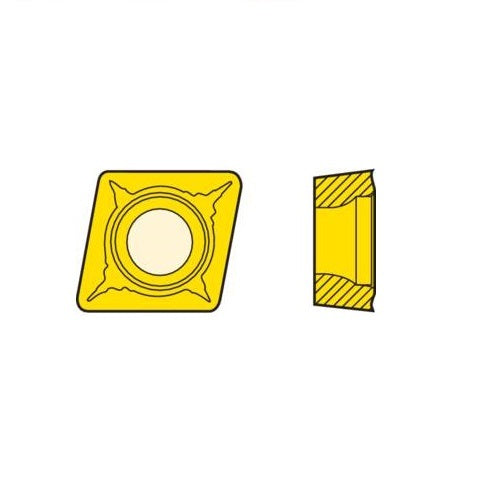

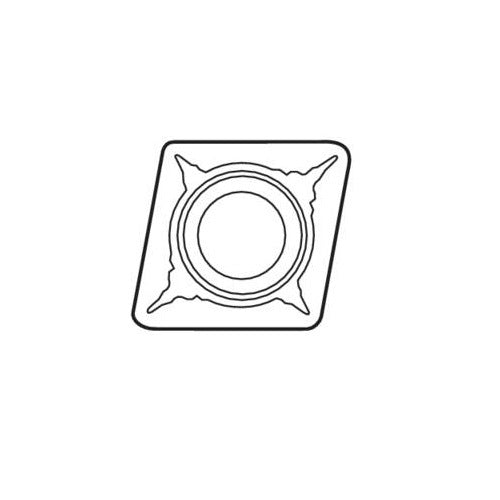

Genuine Seco 80° rhombic (diamond) turning insert, Grade CP500 with F1 chipbreaker. This is the CCGT insert style in grade CP500 (Carbide PVD), with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 3 options.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |
| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. |
About Grade CP500
Carbide PVD. PVD Coated Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti,Al)N + TiN
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert CCGT Insert Style - F1 7° Grade CP500: CCGT09T301-F1
SKU: A0115685 | Model: 02430311

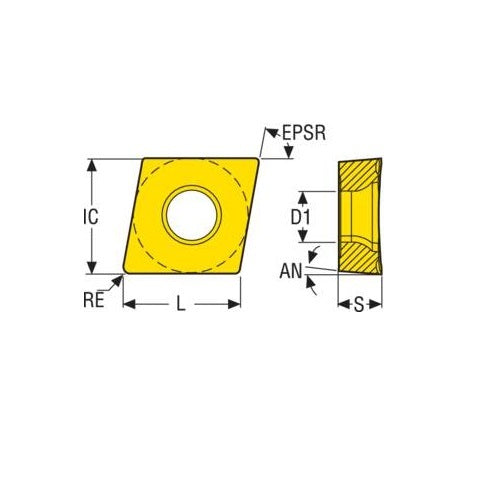

Seco Turning Insert C Shape Code 3.97 x 0.1 x 9.53mm T Insert Type - F1 7° Grade CP500 ± 0.13/± 0.025mm CCGT09T301-F1 Pack of 10
Turning Insert C Shape Code T Insert Type - F1 7° Grade CP500
C shape code.
T Insert Type.
7° insert side clearance angles.
CP500 Insert Grade
PVD Coated
Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
Especially suitable in intermittent cuts.
(Ti,Al)N + TiN
F1 Chipbreaker Programme
Chipbreaker for positive inserts.
Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
