Seco Turning Insert CCMT Insert Style - F1 7° Grade TK0501
Available

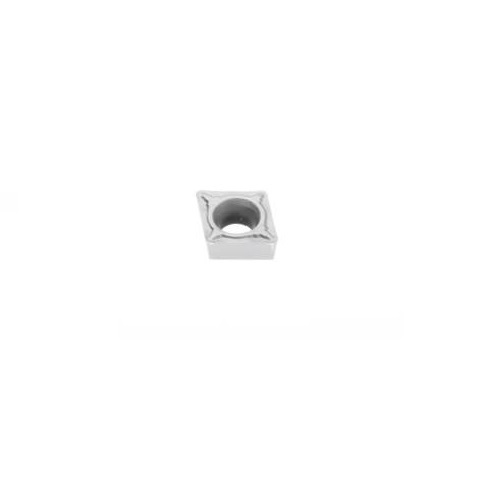

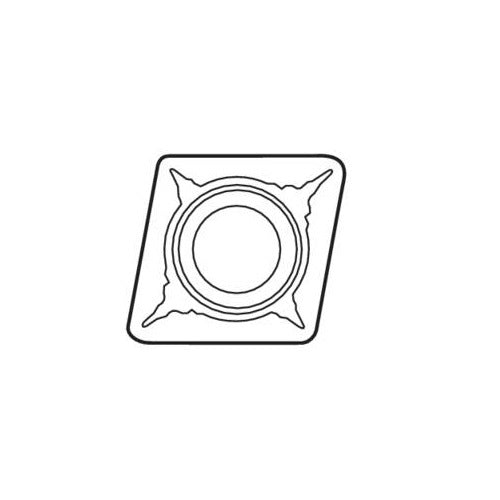

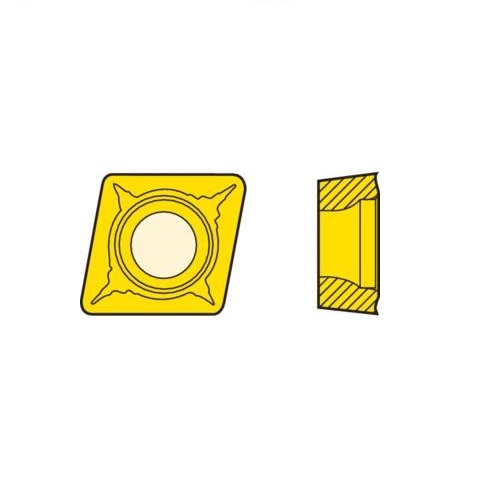

Genuine Seco 80° rhombic (diamond) turning insert, Grade TK0501 with F1 chipbreaker.
Key Specifications
| Grade | TK0501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |

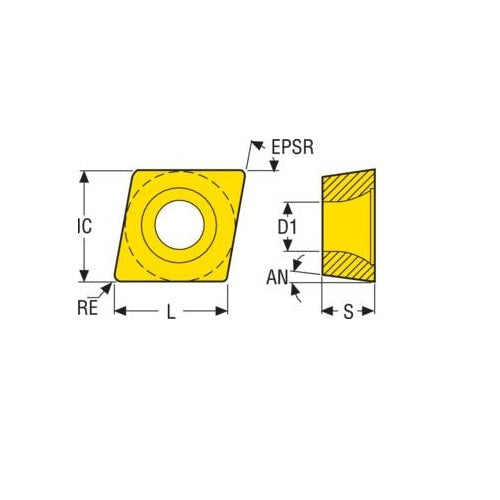

| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.05mm tolerance. |
About Grade TK0501
CVD Coated. Duratomic® grade. An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
