Seco CCMT09T302-F1,TP1020 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP1020 with F1 chipbreaker. This is the CCMT insert style in grade TP1020, with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP1020 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |

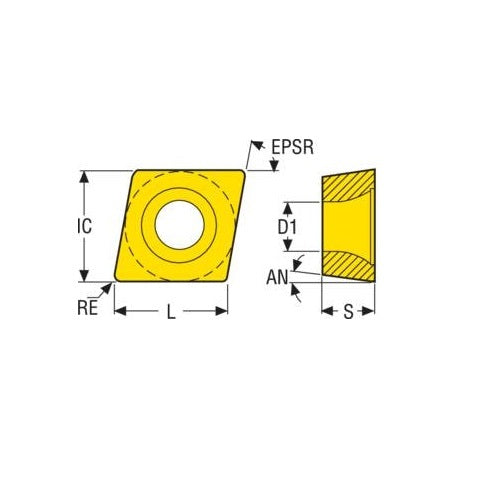

| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. |
About Grade TP1020
Cermet. High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert CCMT Insert Style - F1 7° Grade TP1020: CCMT09T302-F1,TP1020
SKU: A0115753 | Model: 02754805

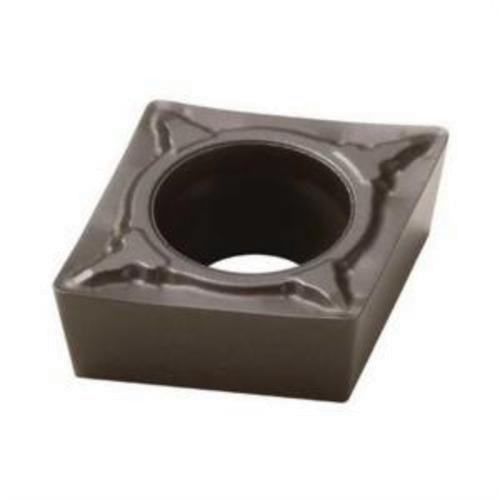

Seco Turning Insert C Shape Code 3.97 x 0.2 x 9.53mm T Insert Type - F1 7° Grade TP1020 ± 0.13/± 0.05mm CCMT09T302-F1 Pack of 10
Turning Insert C Shape Code T Insert Type - F1 7° Grade TP1020
C shape code.
T Insert Type.
7° insert side clearance angles.
TP1020 Insert Grade
Cermet.
High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.

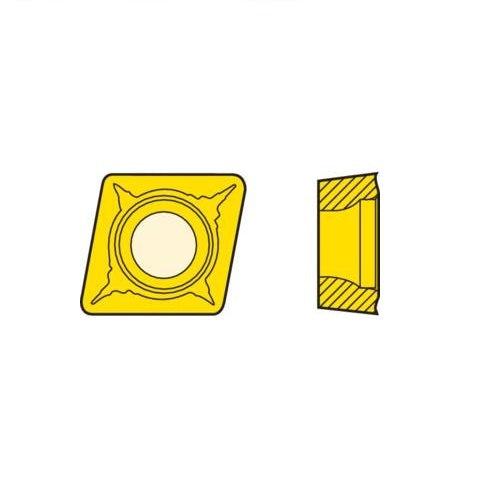

F1 Chipbreaker Programme
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
