Seco CCMT09T304-F1,CP200 Turning Insert
The price shown is for the pack.
Available

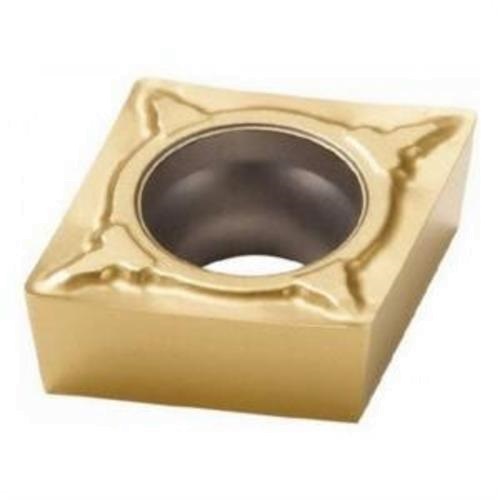

Genuine Seco 80° rhombic (diamond) turning insert, Grade CP200 with F1 chipbreaker. This is the CCMT insert style in grade CP200 (Carbide PVD), with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 19 options.
Key Specifications
| Grade | CP200 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |
| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. |
About Grade CP200
Carbide PVD. PVD Coated. Hard micrograin grade principally intended for finishing in superalloys and titanium. Also works well in stainless steels. (Ti, Al) N + TiN.
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert CCMT Insert Style - F1 7° PVD Coated: CCMT09T304-F1,CP200
SKU: A0115735 | Model: 02430103

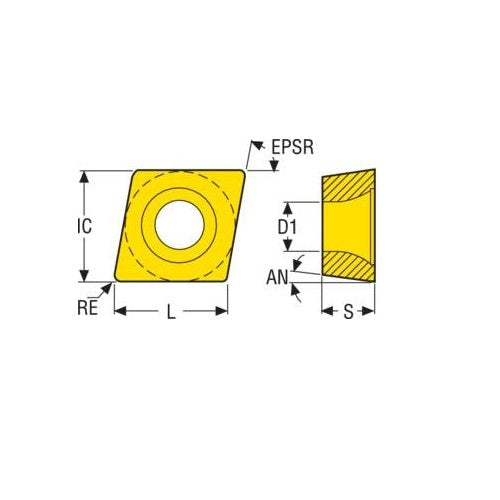

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F1 7° Grade CP200 ± 0.13/± 0.05mm CCMT09T304-F1 Pack of 10
Turning Insert C Shape Code T Insert Type - F1 7° Grade CP200
C shape code.
T Insert Type.
7° insert side clearance angles.
CP200 Insert Grade
PVD Coated.
Hard micrograin grade principally intended for finishing in superalloys and titanium. Also works well in stainless steels.
(Ti, Al) N + TiN.
F1 Chipbreaker Programme
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
