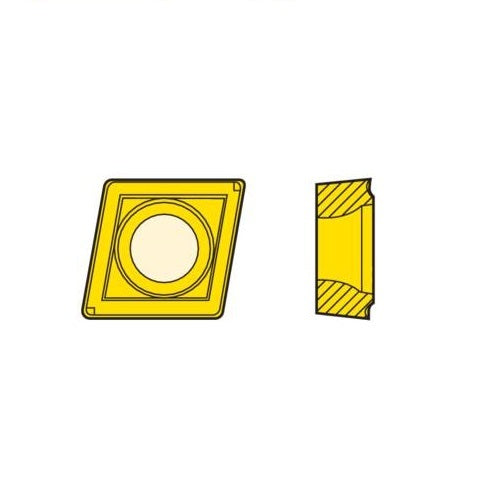

Seco Turning Insert CCMT Insert Style - F2 7° Grade TP40

***Illustrations shown may vary from actual product***

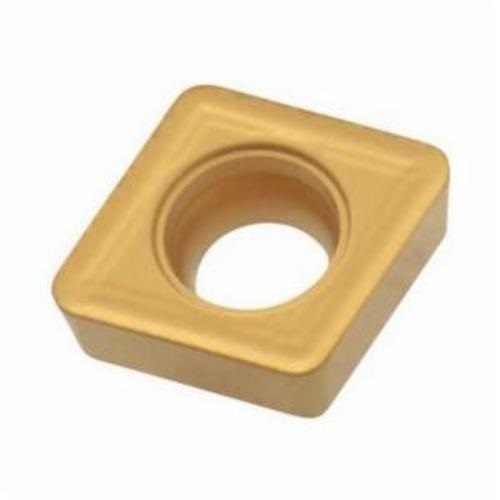

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - F2 7° Grade TP40 ± 0.05/± 0.05mm CCMT060202-F2 Pack of 10

Turning Insert C Shape Code T Insert Type - F2 7° Grade TP40

• C shape code
• T Insert Type.
• 7° insert side clearance angles.

TP40 Insert Grade

• CVD Coated.
• The universal grade for extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
• TiC/Ti(C,N) + TiN

F2 Chipbreaker Programme

• A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
• Suitable for medium cuts in steel and stainless steels application including boring.
• Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
