Seco CCMT120404-M3,TK1501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TK1501 with M3 chipbreaker. This is the CCMT insert style in grade TK1501 (Carbide CVD), with the M3 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TK1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M3 |

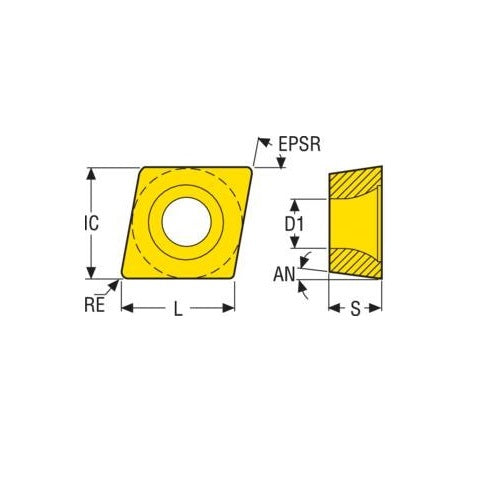

| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.08mm tolerance. |
About Grade TK1501
Carbide CVD. CVD Coated. Duratomic® grade. A highly wear-resistant grade for cast irons in general as well as in steels. The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)
About the M3 Chipbreaker
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow. Suitable for medium cuts in steel and stainless steel application including boring. Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert CCMT Insert Style - M3 7° Grade TK1501 12.7mm IC: CCMT120404-M3,TK1501
SKU: A0115874 | Model: 03062760
Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm T Insert Type - M3 7° Grade TK1501 ± 0.13/± 0.08mm CCMT120404-M3 Pack of 10
Turning Insert C Shape Code T Insert Type - M3 7° Grade TK1501 - ± 0.13/± 0.08mm Tolerance
C shape code
T Insert Type.
7° insert side clearance angles.
± 0.13/± 0.08mm tolerance.
TK1501 Insert Grade
CVD Coated.
Duratomic® grade.
A highly wear-resistant grade for cast irons in general as well as in steels.
The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)
M3 Chipbreaker Programme
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steel application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
