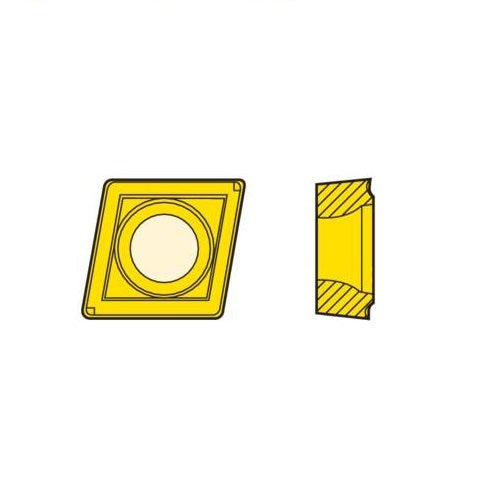

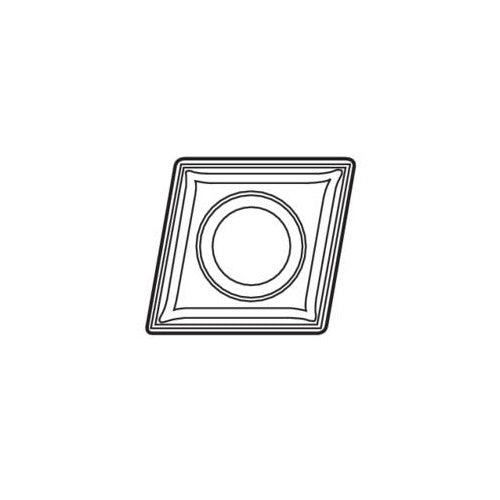

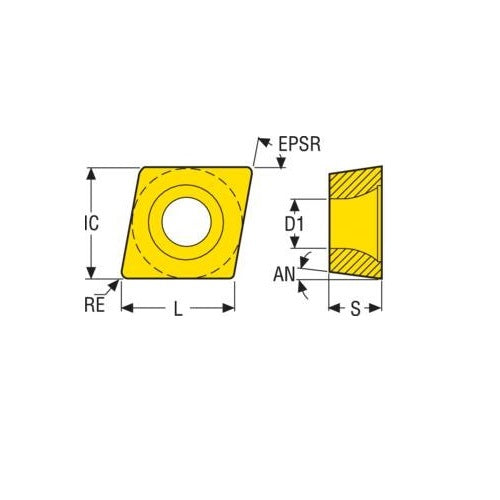

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - M3 7° Grade TP1501 ± 0.05/± 0.05mm CCMT060202-M3 Pack of 10
Turning Insert C Shape Code T Insert Type - M3 7° Grade TP1501 - ± 0.05/± 0.05mm Tolerance
- C shape code
- T Insert Type.
- 7° insert side clearance angles.
- ± 0.05/± 0.05mm tolerance.
TP1501 Insert Grade
- CVD Coated.
- Duratomic® grade.
- Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.
- Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M3 Chipbreaker Programme
- A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
- Suitable for medium cuts in steel and stainless steel application including boring.
- Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Seco Turning Insert CCMT Insert Style - M3 7° Grade TP1501 6.35mm IC
Seco Turning Insert CCMT Insert Style - M3 7° Grade TP1501 6.35mm IC
SKU: A0115841
Type: Turning Insert
- Wide Range
- Reliable Services
- Proven Trust
Available
The Seco Turning Insert CCMT Insert Style by SECO is a Turning Insert CVD Coated. It provides f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm and is suitable for medium cuts in steel and stainless steel including boring operations.
