Seco CCMT120404-M3,TP3501 Turning Insert
Available

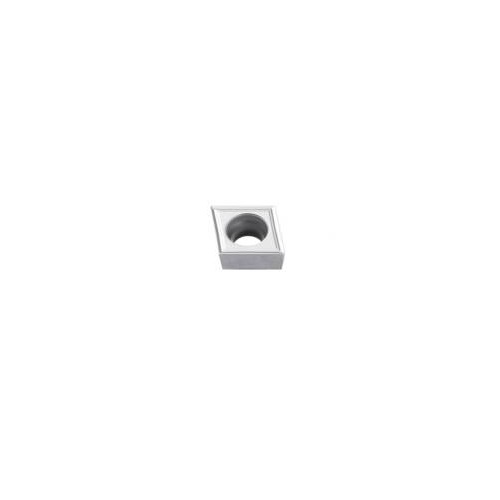

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP3501 with M3 chipbreaker.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |

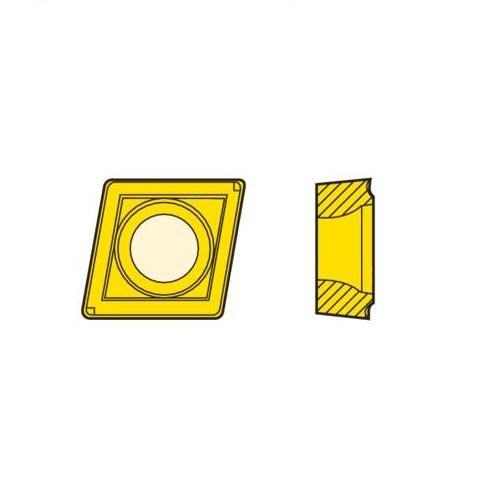

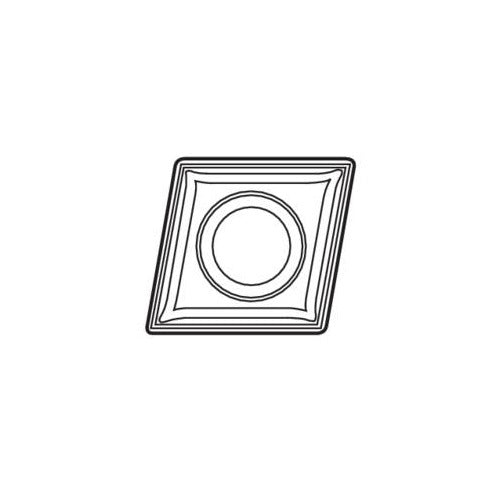

| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M3 |
| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.08mm tolerance. |
About Grade TP3501
Carbide CVD. CVD Coated. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M3 Chipbreaker
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow. Suitable for medium cuts in steel and stainless steel application including boring. Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CCMT120404-M3,TP3501
Model Number: 03095448
-
CCMT120408-M3,TP3501
Model Number: 03095450
-
CCMT120412-M3,TP3501
Model Number: 03095453
