Seco Turning Insert CCMT Insert Style - M5 7° CVD Coated

***Illustrations shown may vary from actual product***

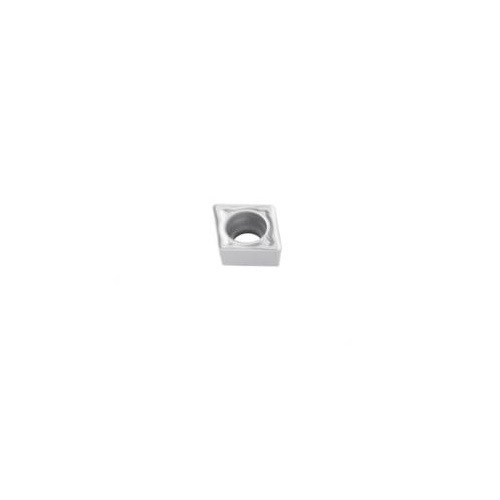

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - M5 7° Grade TK1501 ± 0.13/± 0.05mm CCMT09T304-M5 Pack of 10

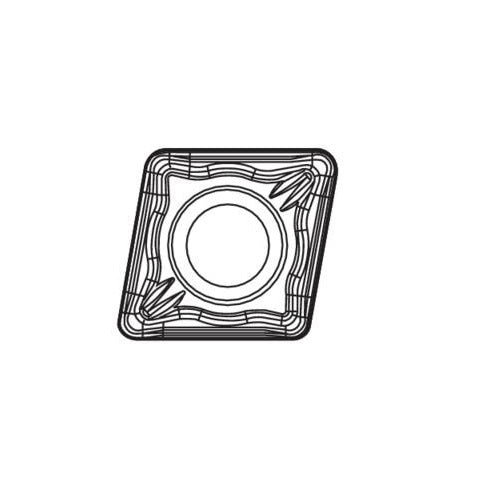

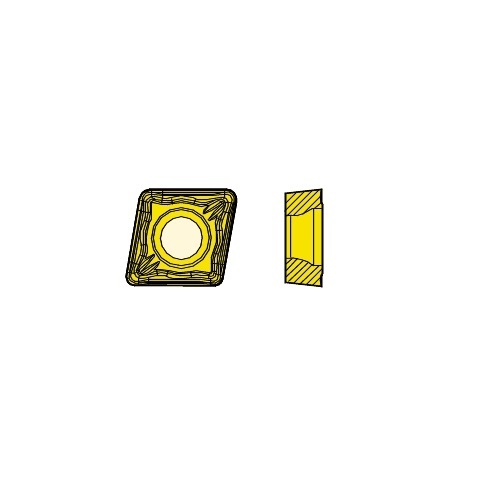

Turning Insert C Shape Code T Insert Type - M5 7° Grade TK1501 - 0.4mm Corner Radius

• C shape code
• T Insert Type.
• 7° insert side clearance angles.
• 0.4mm corner radius (RE).

TK1501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• A highly wear-resistant grade for cast irons in general as well as in steels.
• The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

• A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Safe action in interruptions and rough skin on parts also including boring.
• Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
