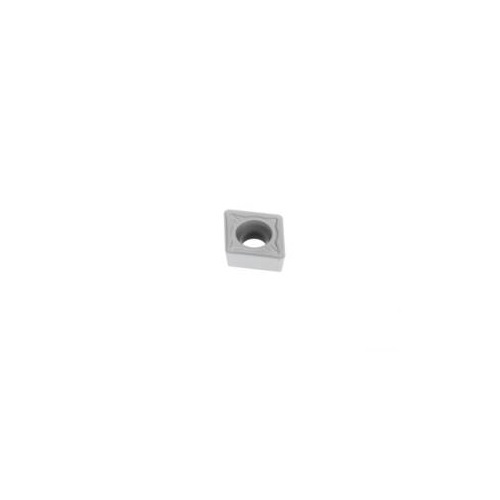

Seco CCMT160512-M5,TP2501 Turning Insert
Available

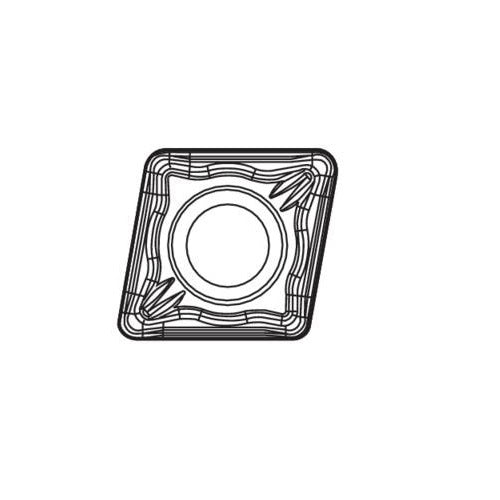

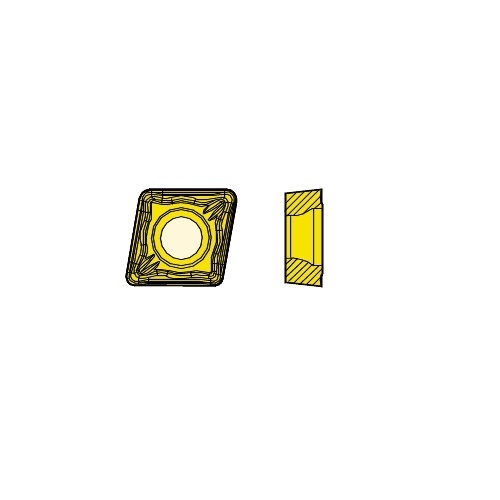

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP2501 with M5 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M5 |

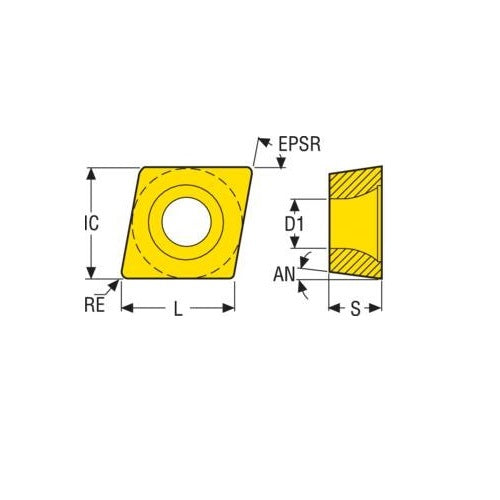

| Insert Details | T Insert Type. 7° insert side clearance angles. 1.2mm corner radius (RE). |
About Grade TP2501
Carbide CVD. CVD Coated. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M5 Chipbreaker
A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron. Combines high edge strength with comparatively low cutting forces. Safe action in interruptions and rough skin on parts also including boring. Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CCMT160512-M5,TP2501
Model Number: 02956332
-
CCMT160516-M5,TP2501
Model Number: 02956333
