Seco CCMT09T304-MF2,TP3501 Turning Insert
The price shown is for the pack.
Available

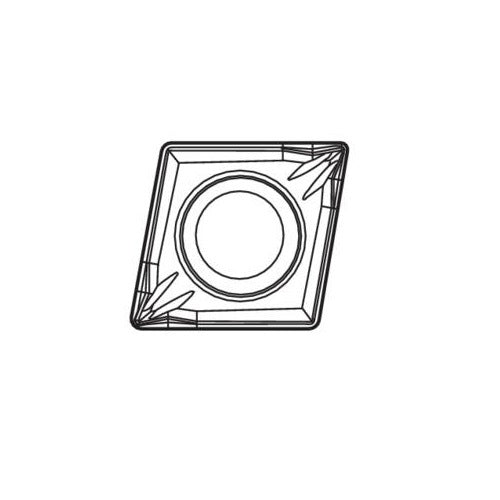

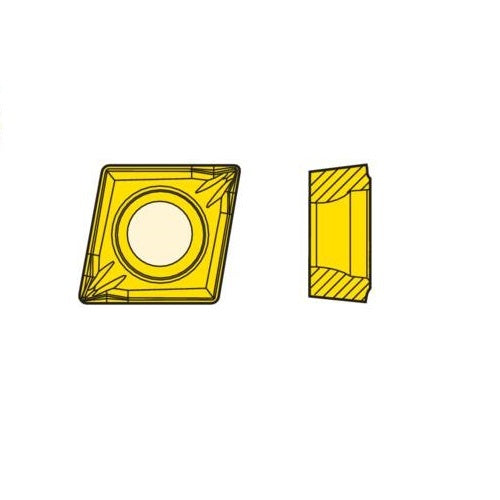

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP2501 with MF2 chipbreaker. This is the CCMT insert style in grade TP2501 (Carbide CVD), with the MF2 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 8 options.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF2 |

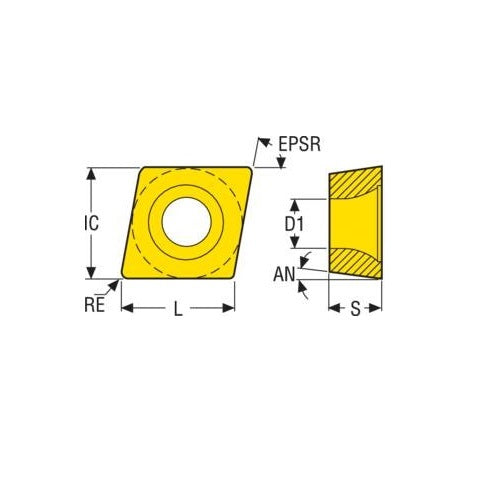

| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.05/± 0.05mm tolerance. 0.2mm corner radius (RE). |
About Grade TP2501
Carbide CVD. CVD Coated. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF2 Chipbreaker
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts. Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring. Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert CCMT Insert Style - MF2 7° CVD Coated: CCMT09T304-MF2,TP3501
SKU: A0115932 | Model: 03095441

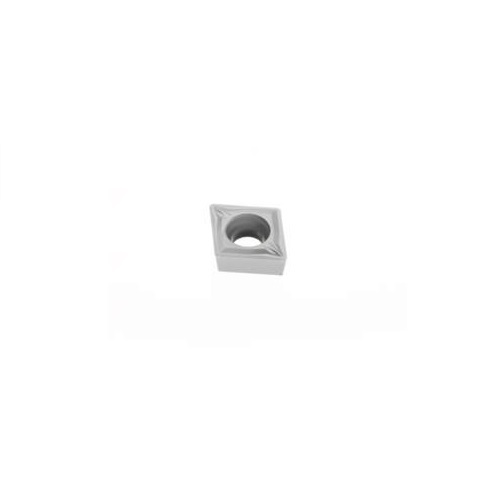

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - MF2 7° Grade TP3501 ± 0.13/± 0.05mm CCMT09T304-MF2 Pack of 10
Turning Insert C Shape Code T Insert Type - MF2 7° Grade TP3501 - ± 0.13/± 0.05mm Tolerance - 0.4mm Corner Radius
C shape code
T Insert Type.
7° insert side clearance angles.
± 0.13/± 0.05mm tolerance.
0.4mm corner radius (RE).
TP3501 Insert Grade
CVD Coated.
Duratomic® grade.
Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
MF2 Chipbreaker Programme
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
