Seco CCMT09T308W-F1,TP1030 Turning Insert
Available

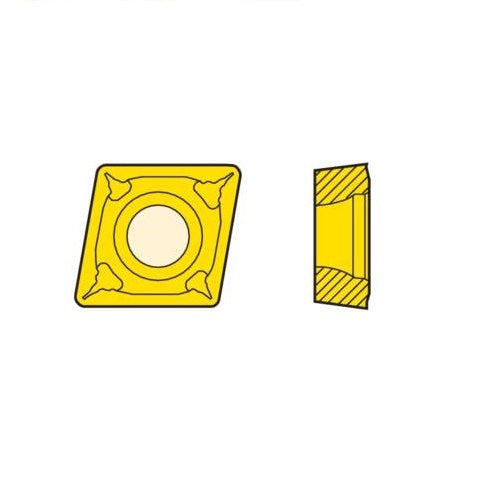

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP1030 with F1 chipbreaker.
Key Specifications
| Grade | TP1030 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |
| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. |
About Grade TP1030
Cermet. Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels. Ti-Al-Si-N nanolaminate coating. W-
About the F1 Chipbreaker
A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish. Suitable for high feed rates at small depths of cut. Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CCMT09T308W-F1,TP1030
Model Number: 02754829
-
CCMT060204W-F1,TP1030
Model Number: 02754801
