Seco CCMT09T304W-F1,TP1501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP1501 with F1 chipbreaker. This is the CCMT insert style in grade TP1501 (Carbide CVD), with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |

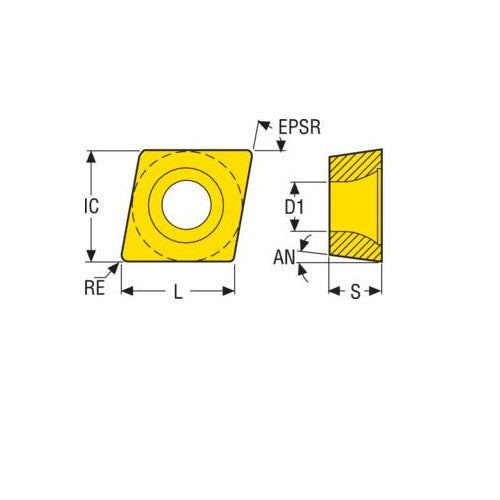

| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.05mm tolerance. Chamfered cutting edges. |
About Grade TP1501
Carbide CVD. CVD Coated. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-
About the F1 Chipbreaker
A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish. Suitable for high feed rates at small depths of cut. Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

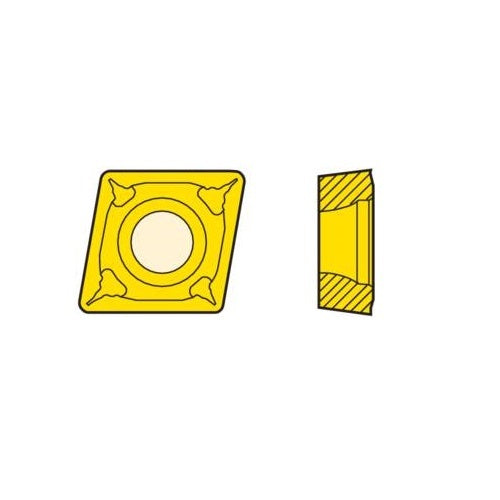

Seco Turning Insert CCMT Insert Style - W-F1 7° Grade TP1501: CCMT09T304W-F1,TP1501
SKU: A0115706 | Model: 02960825

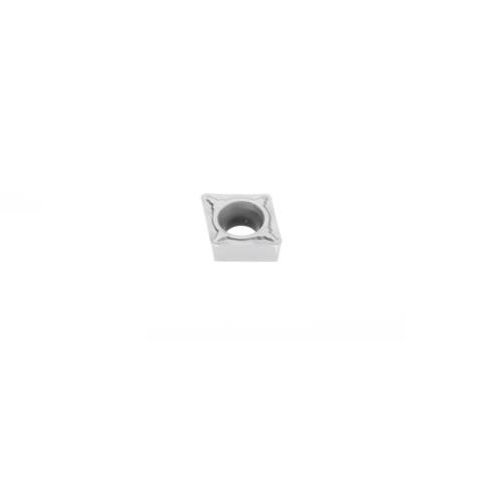

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - W-F1 7° Grade TP1501 ± 0.13/± 0.05mm CCMT09T304W-F1 Pack of 10
Turning Insert C Shape Code T Insert Type - W-F1 7° Grade TP1501 - ± 0.13/± 0.05mm Tolerance
C shape code.
T Insert Type.
7° insert side clearance angles.
± 0.13/± 0.05mm tolerance.
Chamfered cutting edges.
TP1501 Insert Grade
CVD Coated.
Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

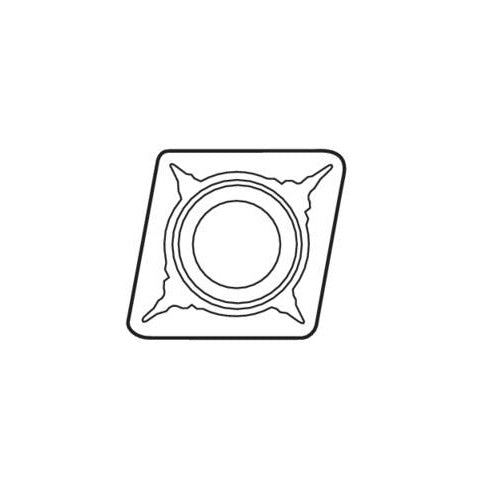

W-F1 Chipbreaker Programme
A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
Suitable for high feed rates at small depths of cut.
Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
