Seco Turning Insert CCMT Insert Style - W-MF2 7° Grade CP500: CCMT09T304W-MF2,TP1501

SKU: A0115715 | Model: 02959767

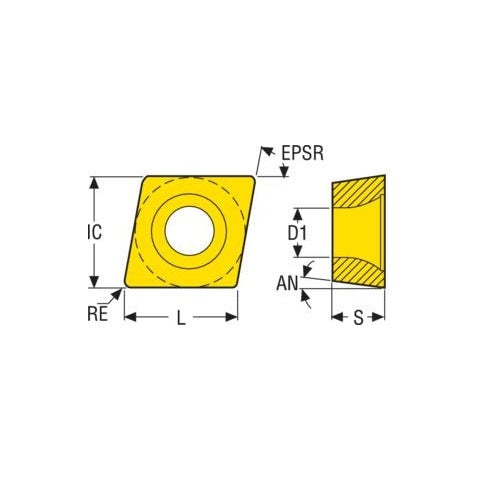

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - W-MF2 7° Grade TP1501 ± 0.13/± 0.05mm CCMT09T304W-MF2 Pack of 10

Turning Insert C Shape Code T Insert Type - W-MF2 7° Grade TP1501 - ± 0.13/± 0.05mm Tolerance

C shape code.

T Insert Type.

7° insert side clearance angles.

± 0.13/± 0.05mm tolerance.

Chamfered cutting edges.

TP1501 Insert Grade

CVD Coated.

Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF2 Chipbreaker Programme

First choice for finishing with both positive and negative inserts.

Chipbreaker suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish.

Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
