Seco Turning Insert CCMT Insert Style - W-MF2 7° Grade TP2501

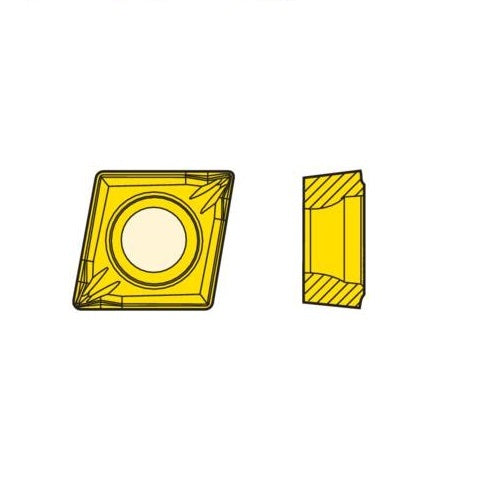

***Illustrations shown may vary from actual product***

Seco Turning Insert C Shape Code 3.97 x 0.79 x 9.53mm T Insert Type - W-MF2 7° Grade TP2501 ± 0.13/± 0.05mm CCMT09T308W-MF2 Pack of 10

Turning Insert C Shape Code T Insert Type - W-MF2 7° Grade TP2501 - ± 0.13/± 0.05mm Tolerance

• C shape code.
• T Insert Type.
• 7° insert side clearance angles.
• ± 0.13/± 0.05mm tolerance.
• Chamfered cutting edges.

TP2501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

W-MF2 Chipbreaker Programme

• First choice for finishing with both positive and negative inserts.
• Chipbreaker suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish.
• Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
