Seco DCGT11T304-F1 Turning Insert TP1020
Available

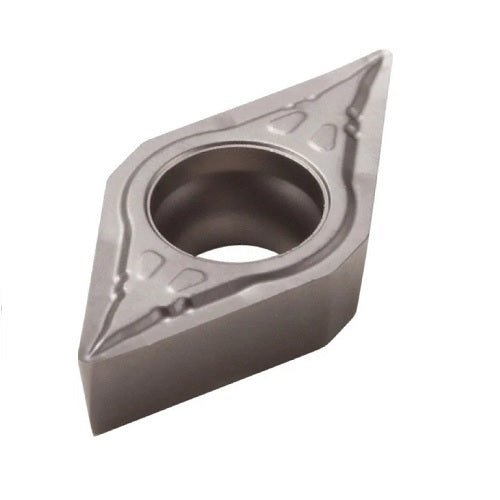

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP1020 with F1 chipbreaker.
Key Specifications
| Grade | TP1020 |
|---|---|

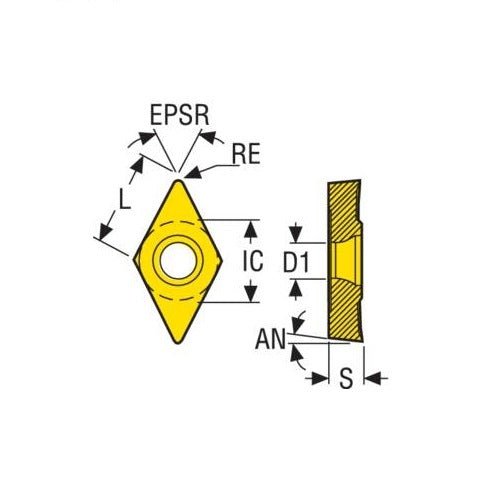

| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | F1 |
| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.025mm tolerance. |
About Grade TP1020
Cermet. High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.

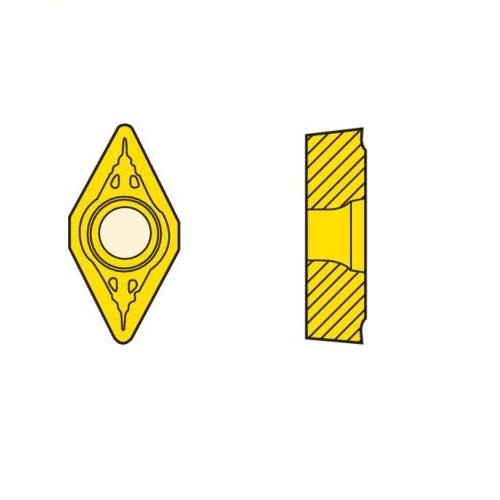

About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
