Turning Insert DNGM Insert Style - MF1 | AIMS Industrial

***Illustrations shown may vary from actual product***

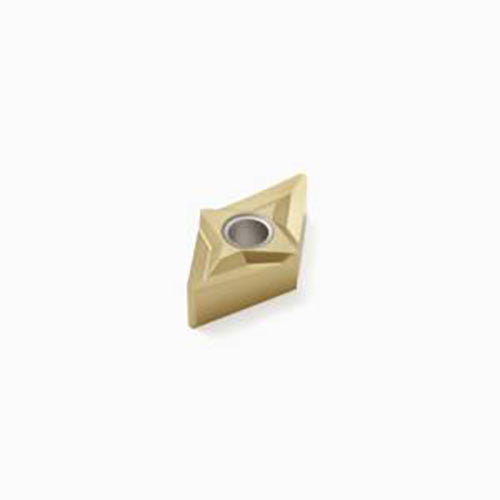

Seco Turning Insert D Shape Code 4.76 x 0.8 x 12.7mm M Insert Type - MF1 Grade CP200 ± 0.13/± 0.025mm Tolerance DNGM150408-MF1,CP200 10pcs

Turning Insert DNGM Insert Style - MF1 Grade CP200

• D shape code.
• M insert type, with hole and chipbreaker on one face only.
• CP200 insert grade.

CP200 Insert Grade

• Hard micrograin grade principally intended for finishing in superalloys and titanium.
• It also works well in stainless steel.
• (Ti, Al) N + TiN.

MF1 Chipbreaker Programme

• Chipbreaker intended for machining stainless steel, superalloys and titanium alloys.
• Type ..GG insert has a sharp, precision ground edge.
• Type ..MG insert has a lightly honed cutting edge for increased strength.
• MF1 is intended for use in semi-finishing and finishing applications.
• Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
