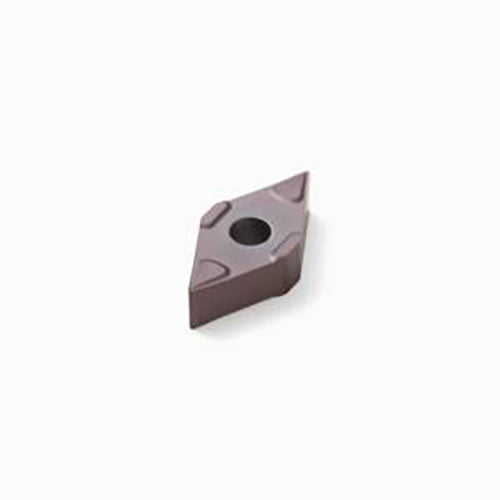

Seco Turning Insert D Shape Code 6.35 x 0.4 x 12.7mm G Insert Type - FF1 Grade TP1030 ± 0.13/± 0.05mm Tolerance DNMG150604-FF1,TP1030 10pcs

Turning Insert DNMG Insert Style - FF1 Grade TP1030

• D shape code.
• G insert type, with hole and chip breaker on both faces.
• TP1030 insert grade.

TP1030 Insert Grade

• Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
• Ti-Al-Si-N nanolaminate coating.

FF1 Chipbreaker Programme

• Chipbreaker for negative inserts. Used to achieve a very fine finish when turning slender steel and stainless steel components.
• Indicative machining range: f = 0,08-0,30 mm/rev, ap = 0,2-3,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
