Turning Insert DNMM Insert Style - R4 | AIMS Industrial

***Illustrations shown may vary from actual product***

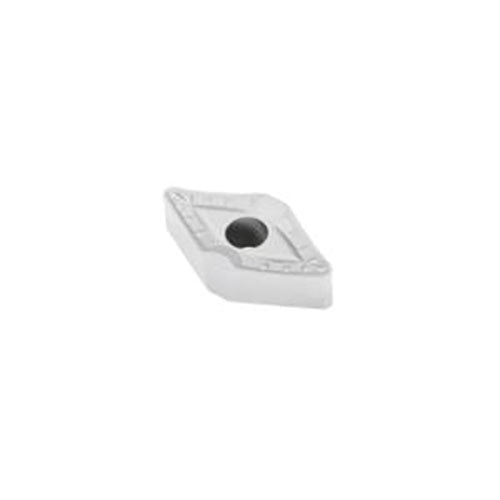

Seco Turning Insert D Shape Code 6.35 x 1.2 x 12.7mm M Insert Type - R4 Grade TP0501 ± 0.13/± 0.05mm Tolerance DNMM150612-R4,TP0501 10pcs

Turning Insert DNMM Insert Style - R4 Grade TP0501

• D shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP0501 insert grade.

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R4 Chipbreaker Programme

• Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
• Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
