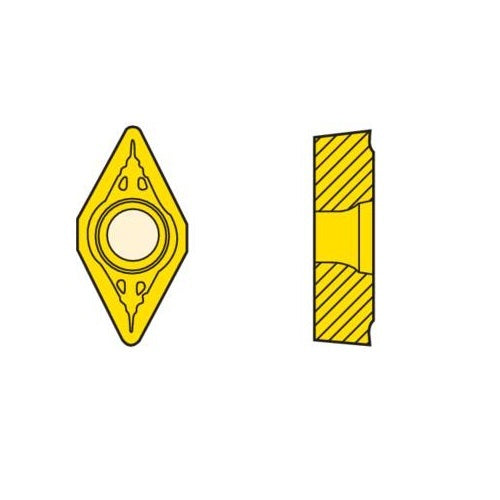

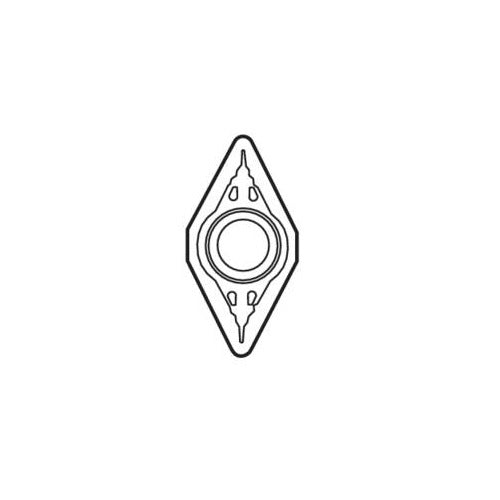

Seco Turning Insert D Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - F1 7° Grade TP0501 ± 0.13/± 0.05mm DCMT11T308-F1 Pack of 10

Turning Insert D Shape Code T Insert Type - F1 7° Grade TP0501 - 0.8mm Corner Radius

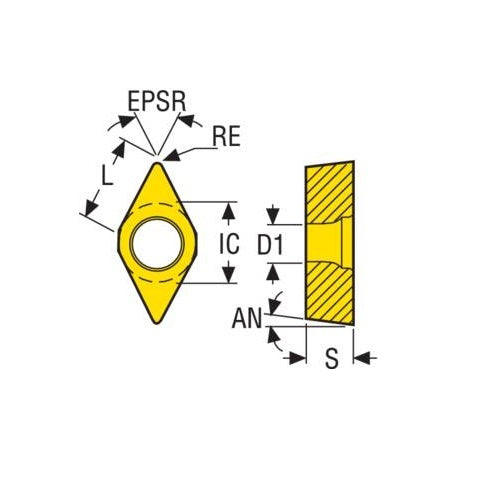

• D shape code
• T Insert Type.
• 7° insert side clearance angles.
• 0.8mm corner radius (RE)

TP0501 Insert Grade

• CVD coated.
• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

F1 Chipbreaker Programme

• Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
• Suitable for high feed rates at fine depths of cut in precision forgings and castings.
• Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
• Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
