Seco DCMT11T304-F1,CP200 Turning Insert
The price shown is for the pack.
Available

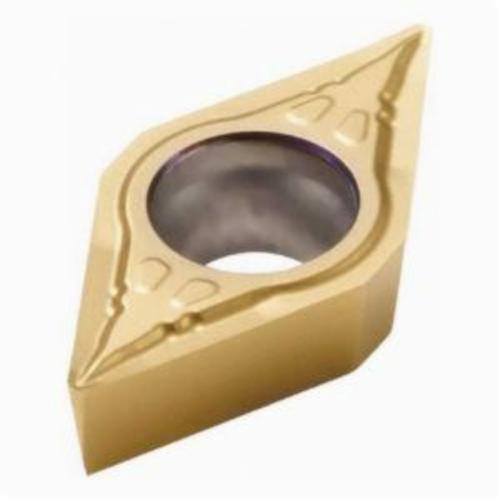

Genuine Seco 55° rhombic (diamond) turning insert, Grade CP200 with F1 chipbreaker. This is the DCMT insert style in grade CP200 (Carbide PVD), with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | CP200 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | F1 |
| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.05mm tolerance. |
About Grade CP200
Carbide PVD. PVD coated. Hard micrograin grade principally intended for finishing in superalloys and titanium. It also works well in stainless steel. (Ti, Al) N + TiN.
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert DCMT Insert Style - F1 7° Grade CP200: DCMT11T304-F1,CP200
SKU: A0116008 | Model: 02430122
Seco Turning Insert D Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F1 7° Grade CP200 ± 0.13/± 0.05mm DCMT11T304-F1 Pack of 10
Turning Insert D Shape Code T Insert Type - F1 7° Grade CP200 - ± 0.13/± 0.05mmTolerance
D shape code
T Insert Type.
7° insert side clearance angles.
± 0.13/± 0.05mm tolerance.
CP200 Insert Grade
PVD coated.
Hard micrograin grade principally intended for finishing in superalloys and titanium.
It also works well in stainless steel.
(Ti, Al) N + TiN.
F1 Chipbreaker Programme
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
