Seco DCMT070202-F1,TP2501 Turning Insert
The price shown is for the pack.
Available

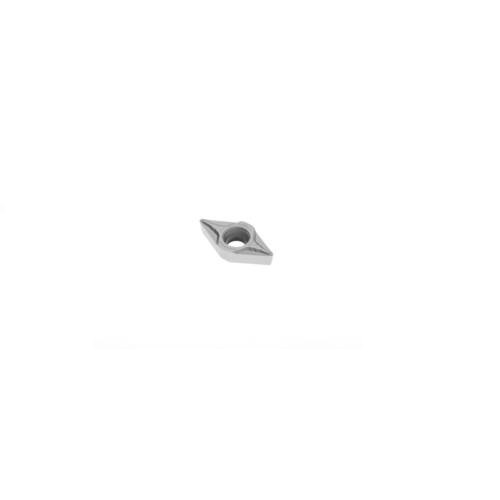

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP2501 with F1 chipbreaker. This is the DCMT insert style in grade TP2501 (Carbide CVD), with the F1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | F1 |

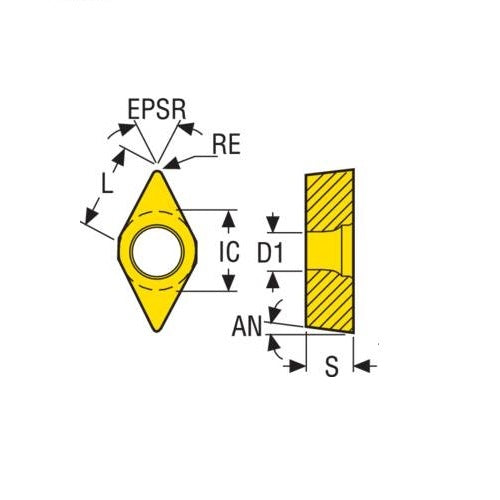

| Insert Details | D shape code. T Insert Type. 7° insert side clearance angles. ± 0.05/± 0.05mm tolerance. |
About Grade TP2501
Carbide CVD. CVD Coated. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert DCMT Insert Style - F1 7° Grade TP2501 6.35 IC: DCMT070202-F1,TP2501
SKU: A0115984 | Model: 02960869
Seco Turning Insert D Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - F1 7° Grade TP2501 ± 0.05/± 0.05mm DCMT070202-F1 Pack of 10
Turning Insert D Shape Code T Insert Type - F1 7° Grade TP2501 - ± 0.05/± 0.05mm Tolerance
D shape code.
T Insert Type.
7° insert side clearance angles.
± 0.05/± 0.05mm tolerance.
TP2501 Insert Grade
CVD Coated.
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
F1 Chipbreaker Programme
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
