Seco DCMT11T304-F2,CP200 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 55° rhombic (diamond) turning insert, Grade CP200 with F2 chipbreaker.
Key Specifications
| Grade | CP200 |
|---|---|
| Substrate / Coating | Carbide PVD |

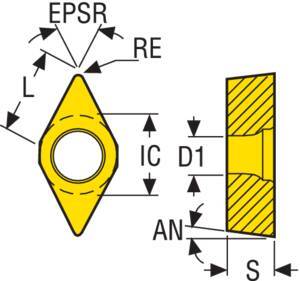

| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | F2 |
| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade CP200
Carbide PVD. PVD Coated. Hard micrograin grade principally intended for finishing in superalloys and titanium. Also works well in stainless steels. (Ti, Al) N + TiN.
About the F2 Chipbreaker
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow. Suitable for medium cuts in steel and stainless steels application including boring. Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert DCMT Insert Style - F2 7° PVD Coated: DCMT11T304-F2,CP200
SKU: A0116054 | Model: 00075007
Seco Turning Insert D Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F2 7° Grade CP200 ± 0.13/± 0.05mm DCMT11T304-F2 Pack of 10
Turning Insert D Shape Code T Insert Type - F2 7° Grade CP200
D shape code
T Insert Type.
7° insert side clearance angles.
CP200 Insert Grade
PVD Coated.
Hard micrograin grade principally intended for finishing in superalloys and titanium.
Also works well in stainless steels.
(Ti, Al) N + TiN.
F2 Chipbreaker Programme
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steels application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
