Seco DCMT11T302-FF1 Turning Insert TP2501
Available

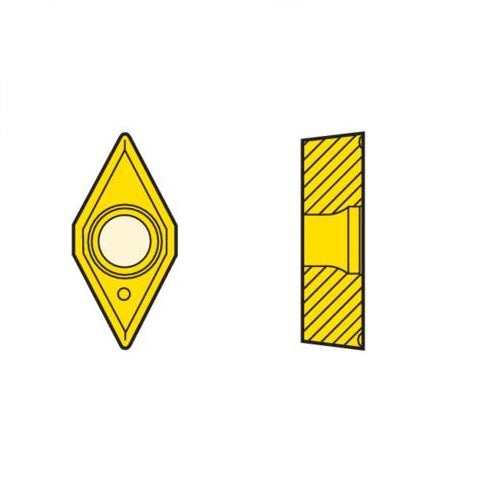

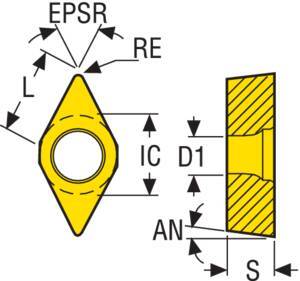

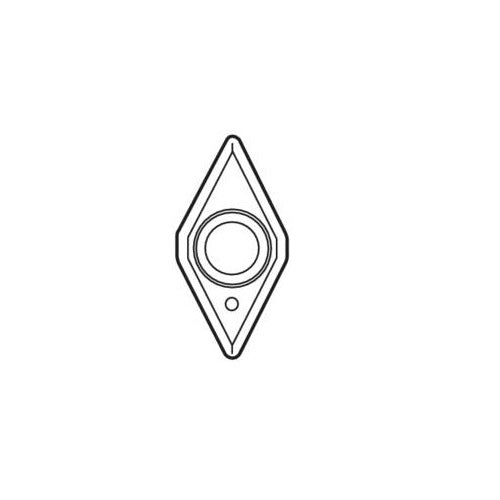

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP2501 with FF1 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | FF1 |
| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade TP2501
Carbide CVD. CVD Coated. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the FF1 Chipbreaker
Chipbreaker for positive inserts. Used to achieve a very fine finish when turning slender steel and stainless steel components. Indicative machining range: f = 0,05-0,30 mm/rev, ap = 0,2-2,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
DCMT11T302-FF1
Model Number: 02960868
-
DCMT11T308-FF1,TP2501
Model Number: 02960880
-
DCMT11T304-FF1,TP2501
Model Number: 02960878
-
DCMT11T308-FF1,TP3501
Model Number: 03139176
-
DCMT11T304-FF1,TP3501
Model Number: 03139177
