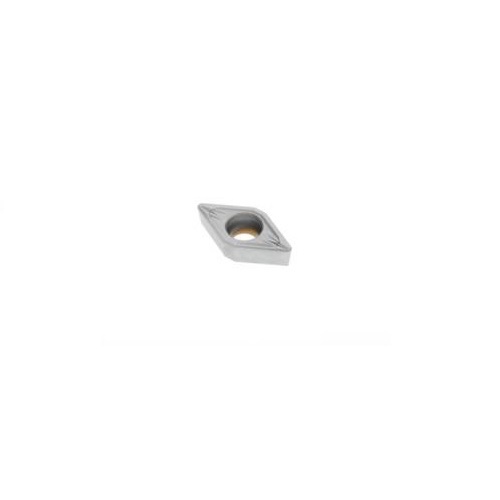

Seco DCMT11T308-MF2,TP0501 Turning Insert
Available
Genuine Seco 55° rhombic (diamond) turning insert, Grade TP0501 with MF2 chipbreaker.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | MF2 |

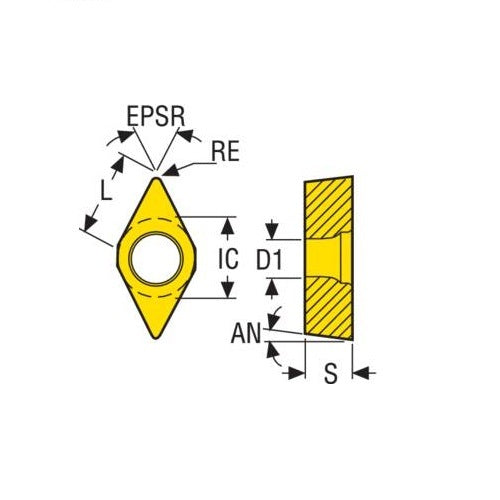

| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.13/± 0.05mm tolerance. 0.8mm corner radius (RE). |
About Grade TP0501
CVD Coated. Duratomic® grade. A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF2 Chipbreaker
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts. Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring. Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
DCMT11T308-MF2,TP0501
Model Number: 02959784
-
DCMT11T304-MF2,TP0501
Model Number: 02959780
