Seco DCMT11T302-MF2,TP1030 Turning Insert
Available

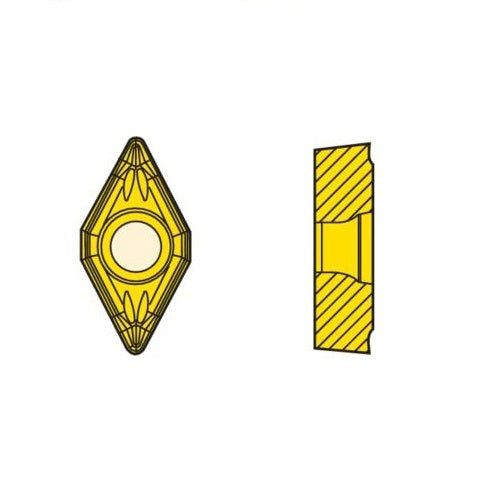

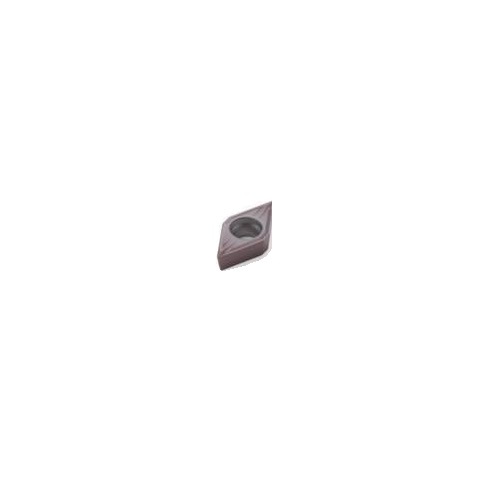

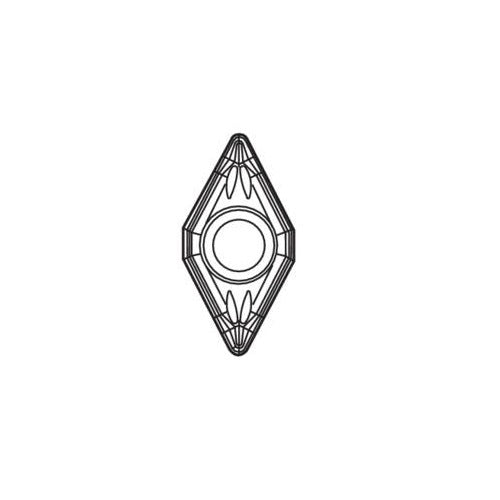

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP1030 with MF2 chipbreaker.
Key Specifications
| Grade | TP1030 |
|---|---|

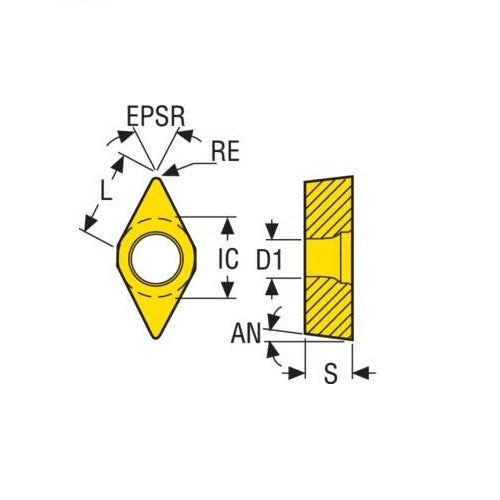

| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | MF2 |
| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade TP1030
Cermet. Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels. Ti-Al-Si-N nanolaminate coating.
About the MF2 Chipbreaker
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts. Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring. Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
DCMT11T302-MF2,TP1030
Model Number: 02754851
-
DCMT11T304-MF2,TP1030
Model Number: 02754857
-
DCMT11T308-MF2,TP1030
Model Number: 02754865
