Seco DCMT070204-MF2,TP3501 Turning Insert
Available

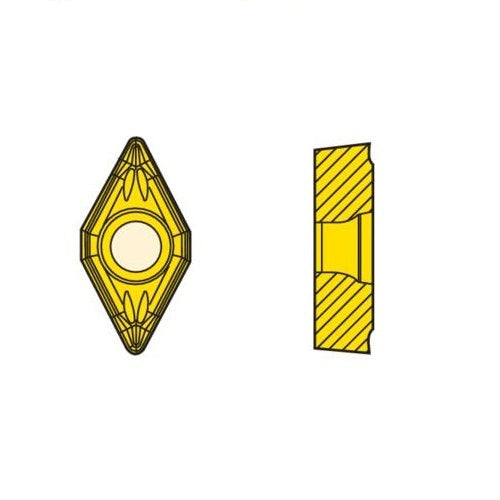

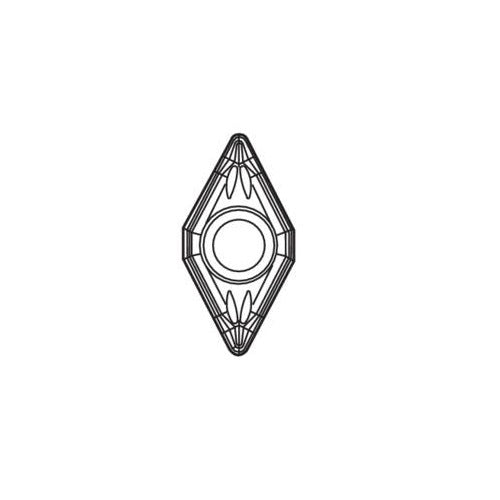

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP3501 with MF2 chipbreaker.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | MF2 |

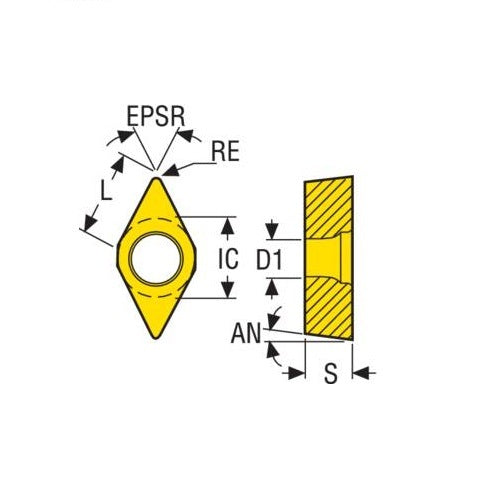

| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.05/± 0.05mm tolerance. |
About Grade TP3501
Carbide CVD. CVD Coated. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF2 Chipbreaker
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts. Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring. Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
