Seco LNMX401432-RR96 Turning Insert TP2501
Available

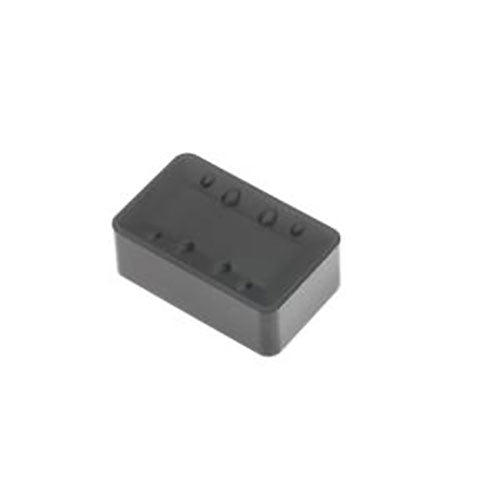

Genuine Seco rectangular turning insert, Grade TP2501 with RR96 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | rectangular (ISO shape code L) |
| Chipbreaker | RR96 |
| Insert Details | C shape code. X insert type. TP2501 insert grade. |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)
About the RR96 Chipbreaker
Heavy roughing chipbreaker for negative single-sided inserts for high parameters and chip control for all materials. Indicative machining range for LNMX50: f = 1,5–2,6 mm/rev, ap = 12–36 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
