Seco LNMX191940-MF TP1501 Turning Insert
Available

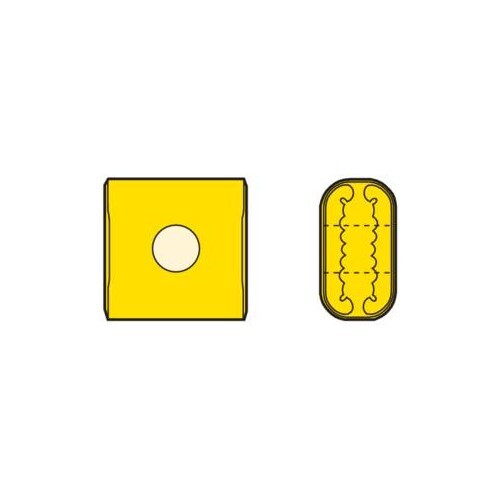

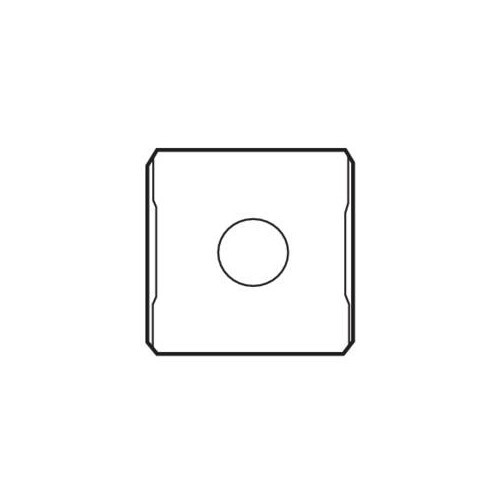

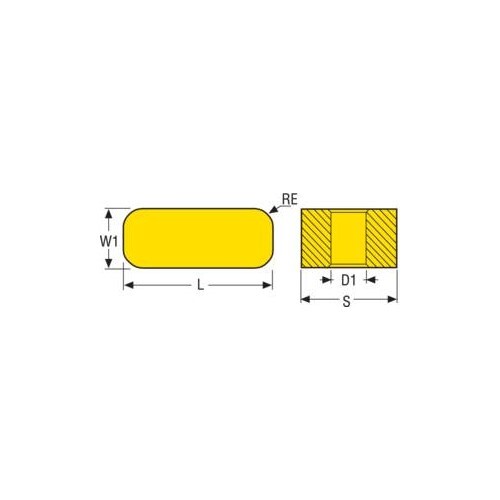

Genuine Seco rectangular turning insert, Grade TP1501.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | rectangular (ISO shape code L) |
| Insert Details | L shape code. X insert type. TP1501 insert grade. |
About Grade TP1501
Carbide CVD. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). LNMX-MF Inserts for Railway Wheel Re-turning For re-machining at a small depth of cut. (Normally used when machining with an underfloor lathe.). Feed recommendation: 0,4-1,0 mm/rev. D.O.C. recommendation: ap < 10 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
