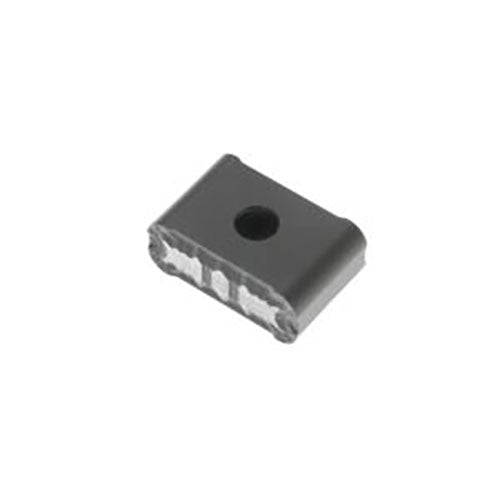

Seco Turning Insert L Shape Code 19.05 x 4 x 30mm X Insert Type - R2 Grade TP0501 ± 0.13/± 0.100mm Tolerance LNMX301940-R2,TP0501 10pcs

Turning Insert LNMX Insert Style - R2 Grade TP0501

• L shape code.
• X insert type.
• TP0501 insert grade.

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

LNMX-R2 Inserts for Railway Wheel Re-turning

• R2 – for less worn out, soft wheels for best chip control.
• Feed recommendation: 0,40-1,10 mm/rev.
• D.O.C. recommendation: ap = 2-5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
