Turning Insert RCMT Insert Style - F1 7° | AIMS Industrial

***Illustrations shown may vary from actual product***

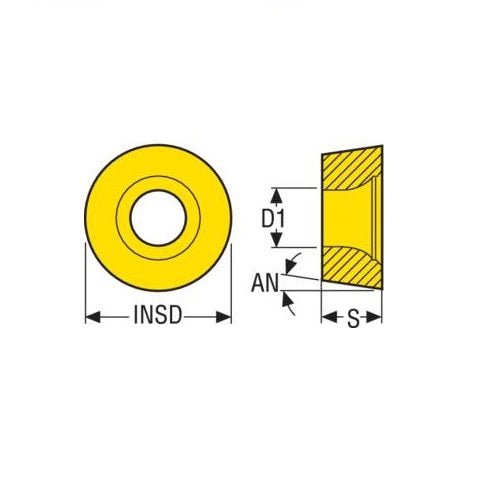

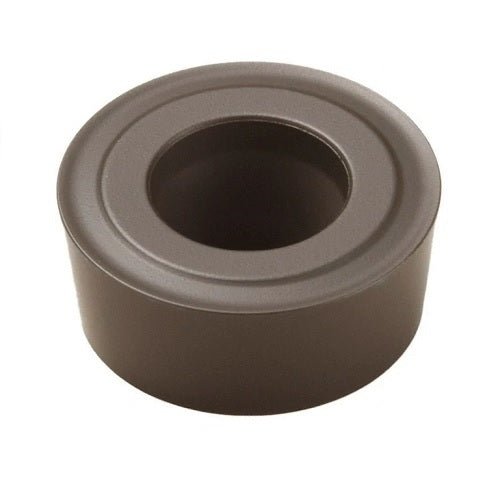

Seco Turning Insert R Shape Code 3.9 x 3.97 x 9.52mm T Insert Type - F1 7° Grade 883 ± 0.13/± 0.05mm RCMT09T300-F1 Pack of 10

Turning Insert R Shape Code T Insert Type - F1 7° Grade 883

• R shape code
• T Insert Type.
• 7° insert side clearance angles.

883 Insert Grade

• Uncoated.
• Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.

F1 Chipbreaker Programme

• Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
• Suitable for high feed rates at fine depths of cut in precision forgings and castings.
• Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
• Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
