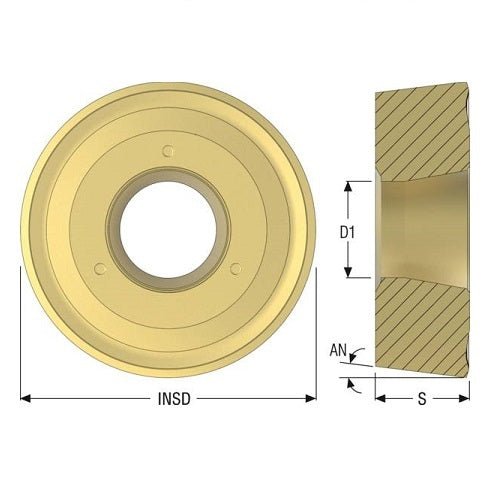

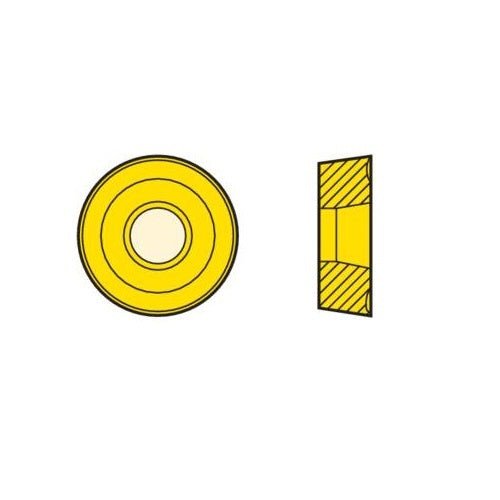

Seco Turning Insert R Shape Code 9.5 x 9.52 x 32mm X Insert Type - RR97 7° Grade TP0501 ± 0.13/± 0.05mm RCMX320900-RR97 Pack of 3

Turning Insert R Shape Code X Insert Type - RR97 7° Grade TP0501

• R shape code
• X Insert Type.
• 7° insert side clearance angles.

TP0501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

RR97 Chipbreaker Programme

• Chipbreaker for large inserts intended for machining of steel with high depth of cut and large feed rates.
• The –RR97 geometry is stronger than the –RR96.
• Indicative machining range: f = 0,8–2,2 mm/rev, ap = 3,0–24,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
