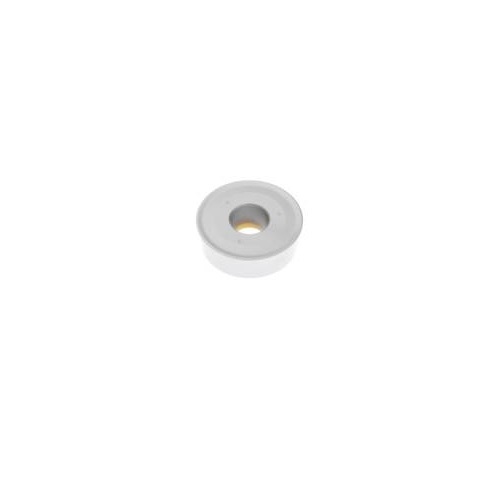

Seco Turning Insert R Shape Code 4.2 x 4.76 x 12mm X Insert Type - RR94 7° Grade TP3501 ± 0.13/± 0.05mm RCMX120400-RR94 Pack of 10

Turning Insert R Shape Code X Insert Type - RR94 7° Grade TP3501

• R shape code
• X Insert Type.
• 7° insert side clearance angles.

TP3501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

RR94 Chipbreaker Programme

• Chipbreaker for large inserts intended for roughing of railway wheels.
• Indicative machining range: f = 0,6–1,5 mm/rev, ap = 3,0–10,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
