Turning Insert SCMT Insert Style - F1 7° | AIMS Industrial

***Illustrations shown may vary from actual product***

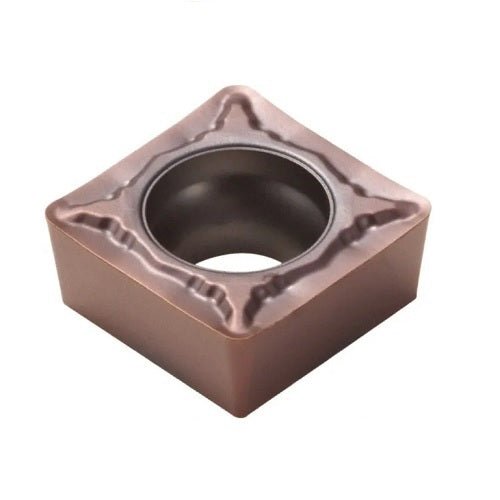

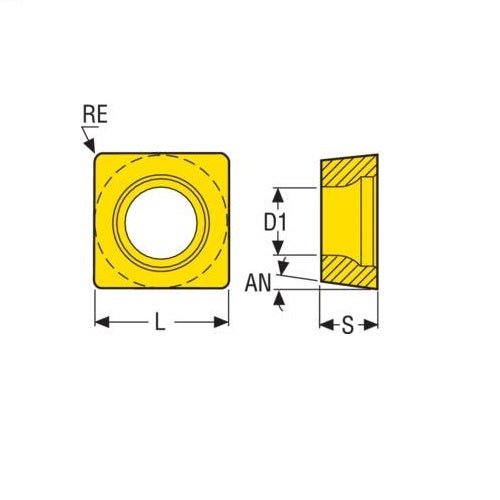

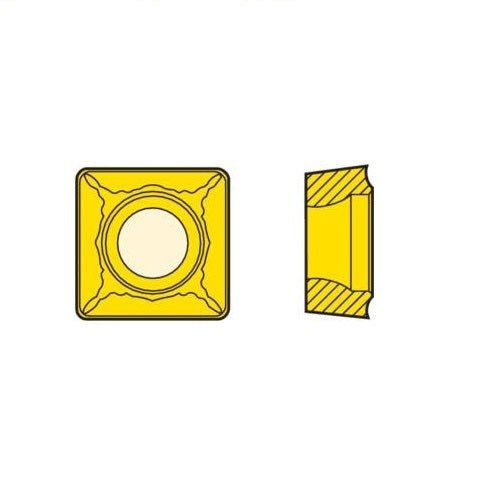

Seco Turning Insert S Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - F1 7° Grade TP1030 ¬± 0.13/¬± 0.05mm SCMT09T308-F1 Pack of 10

Turning Insert S Shape Code T Insert Type - F1 7° Grade TP1030

• S shape code.
• T Insert Type.
• 7° insert side clearance angles.

TP1030 Insert Grade

• Cermet.
• Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
• Ti-Al-Si-N nanolaminate coating.

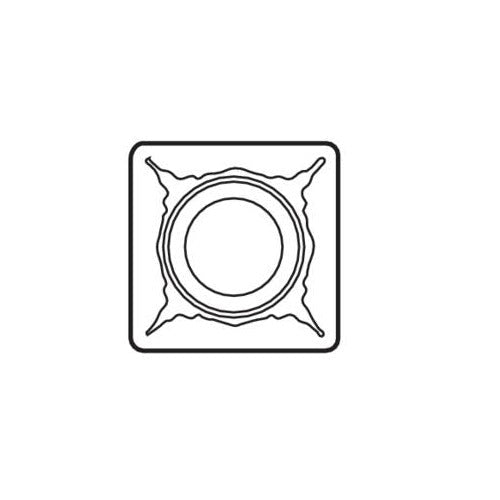

F1 Chipbreaker Programme

• Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
• Suitable for high feed rates at fine depths of cut in precision forgings and castings.
• Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
• Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
