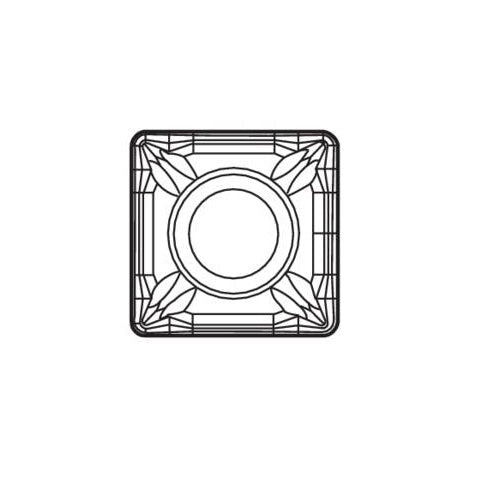

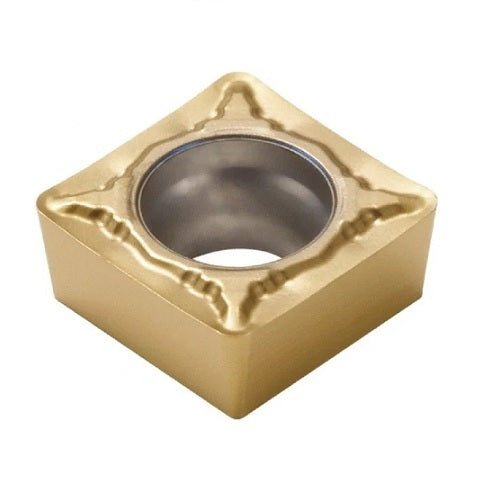

Seco SCMT09T308-MF2 Turning Insert CP500
Available
Genuine Seco square turning insert, Grade CP500 with MF2 chipbreaker.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | MF2 |

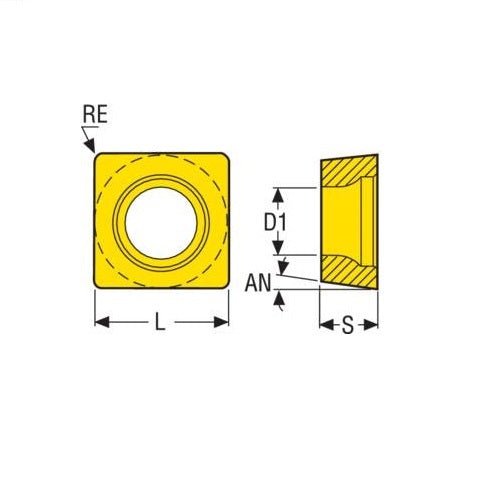

| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade CP500
Carbide PVD. PVD coated. Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti, Al)N + TiN

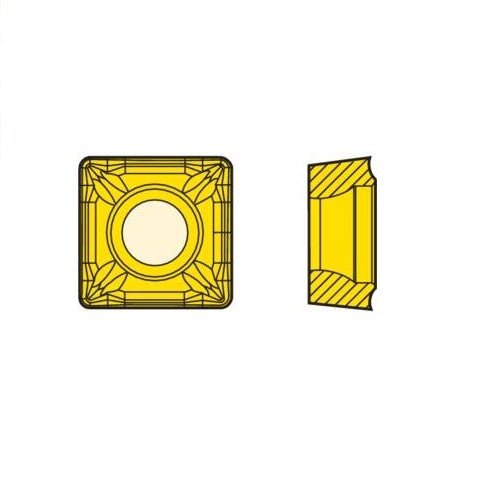

About the MF2 Chipbreaker
A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts. Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring. Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
