Turning Insert SCMT Insert Style - MF2 7° | AIMS Industrial

***Illustrations shown may vary from actual product***

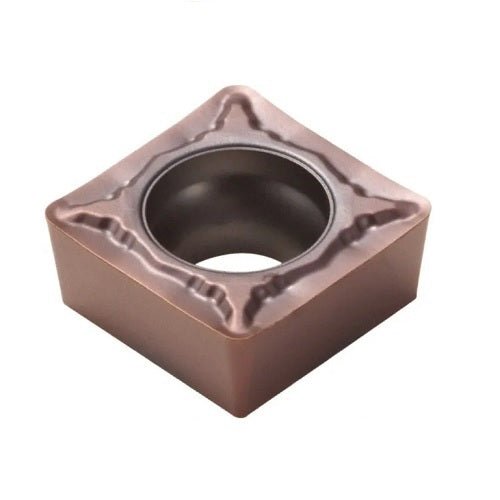

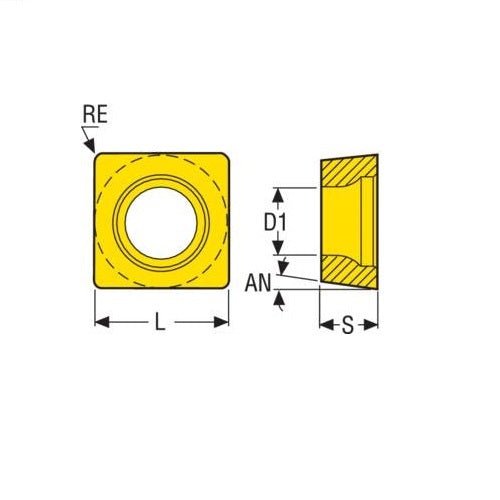

Seco Turning Insert S Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - MF2 7° Grade TP1030 ± 0.13/± 0.05mm SCMT09T308-MF2 Pack of 10

Turning Insert S Shape Code T Insert Type - MF2 7° Grade TP1030

• S shape code
• T Insert Type.
• 7° insert side clearance angles.

TP1030 Insert Grade

• Cermet.
• Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
• Ti-Al-Si-N nanolaminate coating.

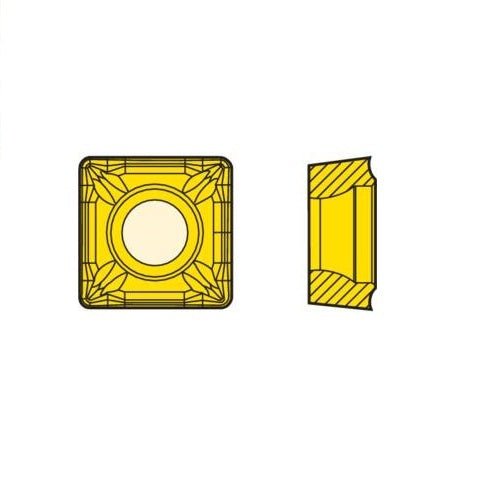

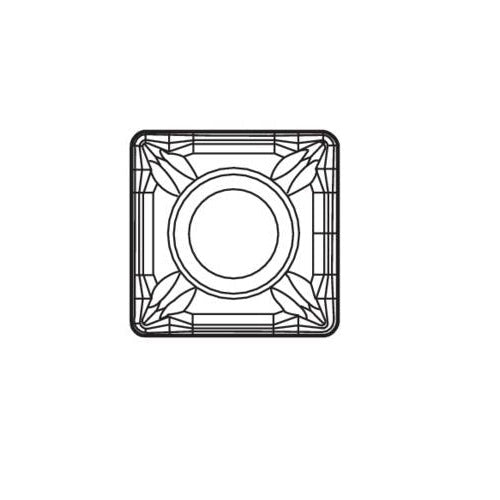

MF2 Chipbreaker Programme

• A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
• Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
• Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
