Turning Insert SNMG Insert Style - MF2 | AIMS Industrial

***Illustrations shown may vary from actual product***

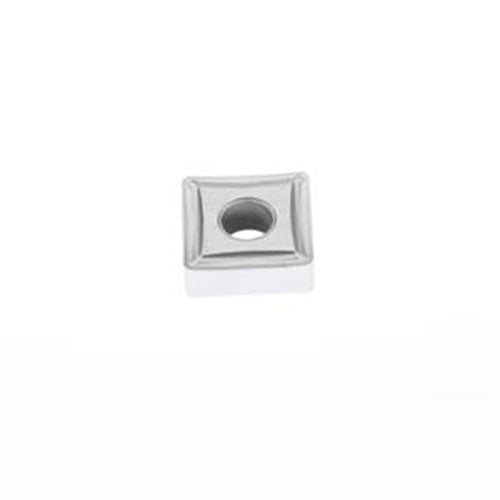

Seco Turning Insert S Shape Code 4.76 x 0.79 x 12.7mm G Insert Type - MF2 Grade TP3501 ± 0.13/± 0.05mm Tolerance SNMG120408-MF2,TP3501 10pcs

Turning Insert SNMG Insert Style - MF2 Grade TP3501

• S shape code.
• G insert type, with hole and chip breaker on both faces.
• TP3501 insert grade.

TP3501 Insert Grade

• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

• First choice for finishing with negative inserts.
• Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
• Good capacity for medium rough machining.
• Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
