Turning Insert SNMG Insert Style - M5 | AIMS Industrial

***Illustrations shown may vary from actual product***

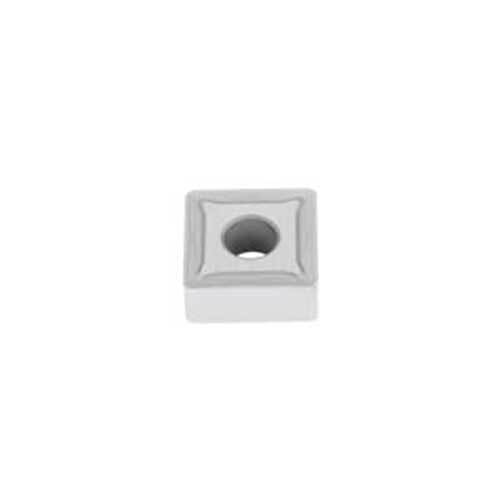

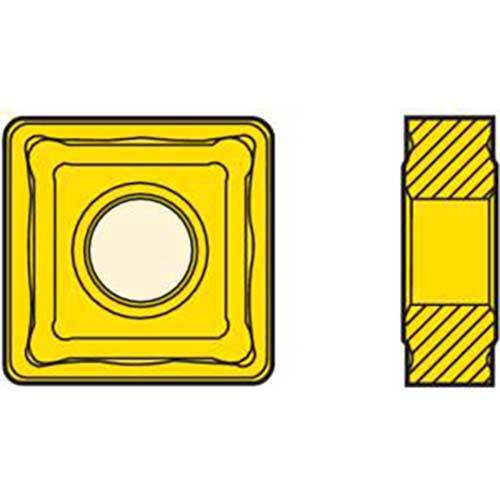

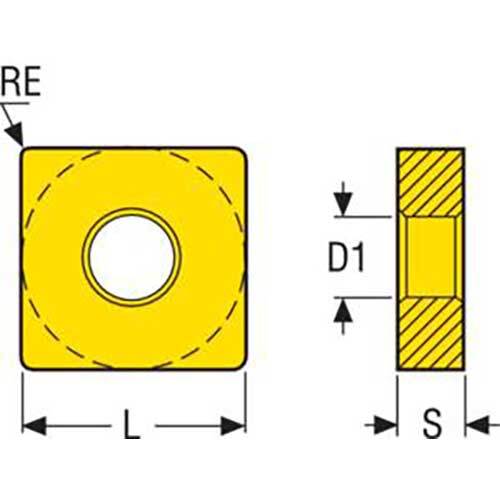

Turning Insert SNMG Insert Style - M5 Grade TP25

• S shape code.
• G insert type.

TP25 Insert Grade

• The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
• Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

• The choice for roughing by means of double-sided inserts.
• Intended for demanding operations at high feed rates in steel. stainless steel and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Recommended machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
• (f = 0.012-0.028 in/rev,ap = 0.060-0.280 inch).

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
