***Illustrations shown may vary from actual product***

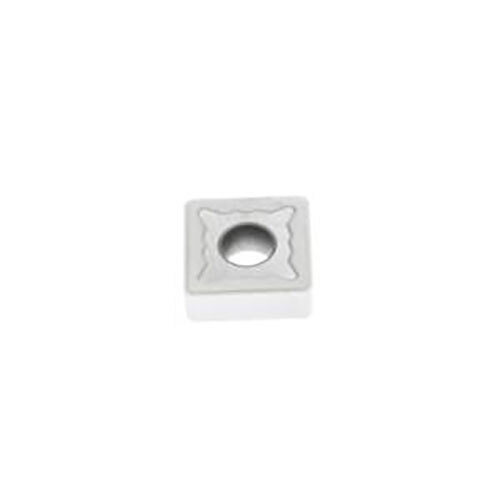

Seco Turning Insert S Shape Code 6.35 x 1.6 x 19.05mm G Insert Type - MR7 Grade TP1501 ± 0.13/± 0.05mm Tolerance SNMG190616-MR7,TP1501 10pcs
Turning Insert SNMG Insert Style - MR7 Grade TP1501
- S shape code.
- G insert type, with hole and chip breaker on both faces.
- TP1501 insert grade.
TP1501 Insert Grade
- Duratomic® grade.
- Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
- Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
MR7 Chipbreaker Programme
- The strongest chipbreaker for double-sided inserts.
- The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert.
- The chipbreaker has a wide negative T land, which gives high edge strength.
- Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
