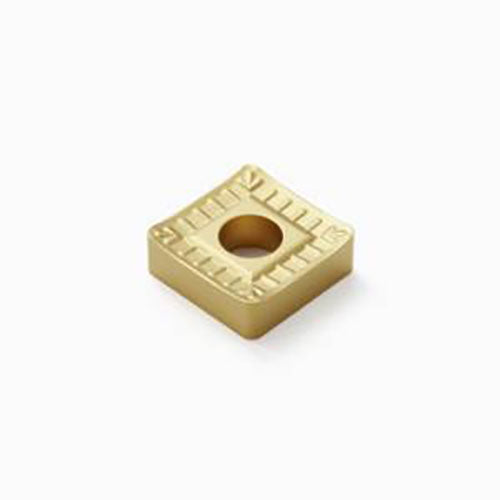

Seco Turning Insert S Shape Code 6.35 x 1.6 x 19.05mm M Insert Type - R4 Grade TP40 ± 0.13/± 0.05mm Tolerance SNMM190616-R4,TP40 10pcs

Turning Insert CNMM Insert Style - R4 Grade TP40

• C shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP40 insert grade.

TP40 Insert Grade

• Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
• TiC/Ti(C,N) + TiN.

R4 Chipbreaker Programme

• Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
• Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
