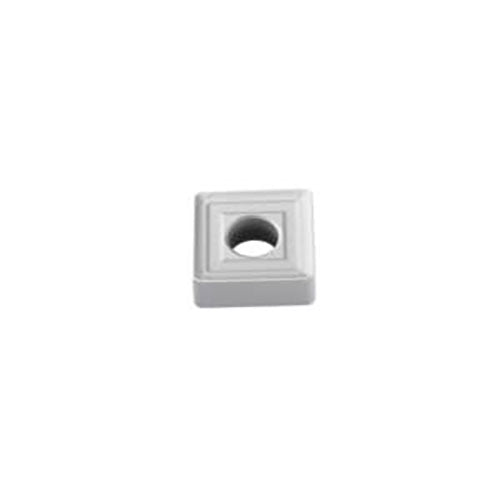

Seco Turning Insert S Shape Code 6.35 x 1.6 x 19.05mm M Insert Type - R57 Grade TP1501 ± 0.13/± 0.05mm Tolerance SNMM190616-R57,TP1501 10pcs

Turning Insert SNMM Insert Style - R57 Grade TP1501

• S shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP1501 insert grade.

TP1501 Insert Grade

• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R57 Chipbreaker Programme

• Chipbreaker for single-sided roughing inserts. Recommended for roughing operations on steel at high feed rates and high depth of cut.
• Indicative machining range: f = 0,45-1,10 mm/rev, ap = 2-12 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
