Turning Insert SNMM Insert Style - R57 | AIMS Industrial

***Illustrations shown may vary from actual product***

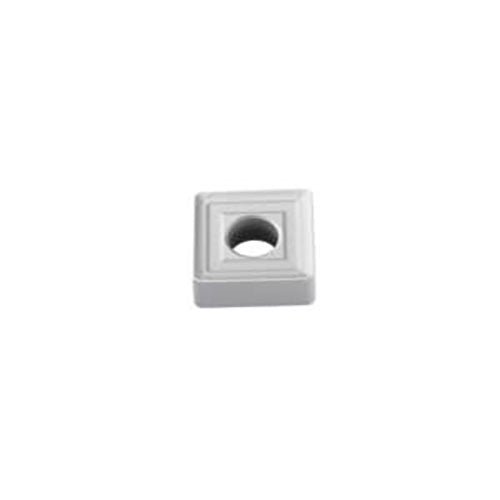

Seco Turning Insert S Shape Code 6.35 x 2.4 x 19.05mm M Insert Type - R57 Grade TP0501 ± 0.13/± 0.05mm Tolerance SNMM190624-R57,TP0501 10pcs

Turning Insert SNMM Insert Style - R57 Grade TP0501

• S shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP0501 insert grade.

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R57 Chipbreaker Programme

• Chipbreaker for single-sided roughing inserts. Recommended for roughing operations on steel at high feed rates and high depth of cut.
• Indicative machining range: f = 0,45-1,10 mm/rev, ap = 2-12 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
