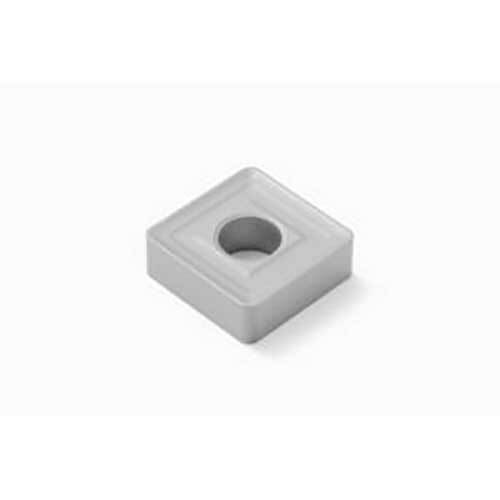

Seco SNMM250724-R57 Turning Insert TP25

• 4 cutting edges per insert — index to a fresh edge instead of replacing the whole insert, lowering cost per edge
• Seco grade TP25 Carbide CVD matched to the specified workpiece material range for predictable, repeatable tool life
• R57 chipbreaker geometry controls chip formation through repeat production cycles, reducing chip-related downtime
• 2.4 mm corner radius for the specified finish and strength balance
• Seat size code 25 matches the corresponding Seco toolholder pocket
• Supplied in packs of 10 — keep production running without single-insert reorder delays

Seco Turning Inserts (carbide and cermet grades in C, D, R, S, T, V, and W shapes with precision tolerance classes and chipbreaker geometries) deliver reliable, repeatable performance for CNC and conventional lathe turning of steel, stainless steel, cast iron, aluminium, titanium, and superalloy workpieces in production and job shop environments.

General Engineering and Job Shops

• CNC lathe insert supply for turning steel, stainless, and cast iron components
• Turning insert supply for job shop and contract machining operations on mixed materials
• Indexable carbide insert supply for production turning on CNC turning centres
• Seco insert replacement supply for maintaining consistent surface finish and tool life

Automotive and High-Volume Manufacturing

• P-grade and K-grade turning insert supply for automotive component turning of steel and cast iron
• High-volume automotive turning insert supply for crankshafts, shafts, flanges, and housings
• Cermet insert supply for finishing automotive steel and cast iron components at high speed

Aerospace and Defence

• S-grade turning insert supply for machining titanium, Inconel, and nickel-based superalloy aero components
• Carbide insert supply for roughing and finishing aero structural components in titanium and aluminium
• Precision turning insert supply for aerospace-grade surface finish and dimensional accuracy requirements

Oil, Gas, and Energy

• Turning insert supply for machining OCTG connectors, valve bodies, and downhole components in stainless and Inconel
• M-grade insert supply for stainless steel oil and gas component turning
• Turning insert supply for power generation turbine components in nickel alloys and titanium

• Grade: TP25
• Substrate / Coating: Carbide CVD
• Chipbreaker: R57
• Insert Thickness (mm): 7.94
• Corner Radius (mm): 2.4
• Seat Size Code: 25
• Cutting Edges per Insert: 4
• Pack Quantity: 10
