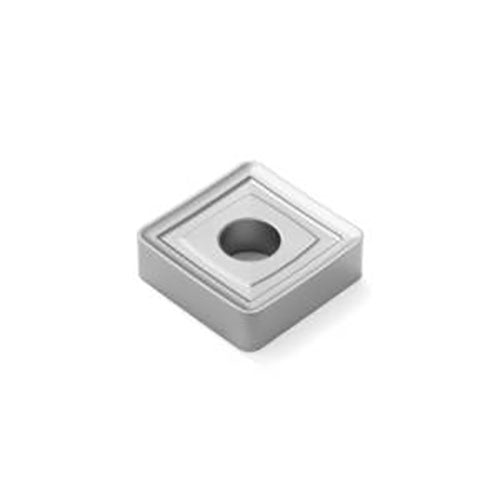

Seco Turning Insert S Shape Code 7.94 x 2.4 x 25.4mm M Insert Type - RR9 Grade TP3501 ± 0.13/± 0.05mm Tolerance SNMM250724-RR9,TP3501 10pcs
Turning Insert SNMM Insert Style - RR9 Grade TP3501
- S shape code.
- M insert type, with hole and chipbreaker on one face only.
- TP3501 insert grade.
TP3501 Insert Grade
- Duratomic® grade.
- Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts.
- Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
RR9 Chipbreaker Programme
- Extremely strong chipbreaker for single-sided negative inserts, for use at high feed rates.
- Suitable for difficult castings and forgings and for austenitic stainless steel.
- Indicative machining range: f = 0,5–1,2 mm/rev, ap = 2,5–15,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- To boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
