Seco SNMM250924-R68 Turning Insert TP2501
Available

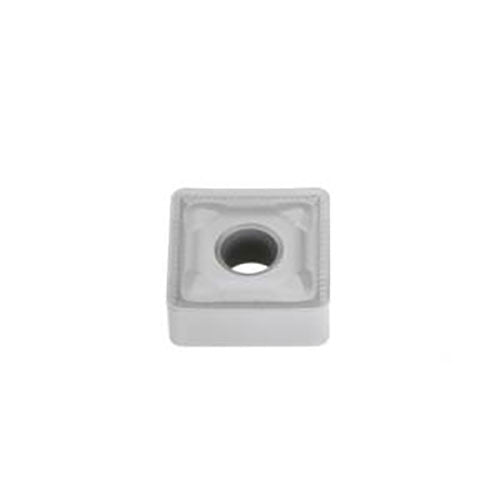

Genuine Seco square turning insert, Grade TP2501 with R68 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | R68 |
| Insert Details | S shape code. M insert type, with hole and chipbreaker on one face only. TP2501 insert grade. |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the R68 Chipbreaker
Chipbreaker for single-sided insert. Recommended for heavy-roughing of steel. Indicative machining range: f = 0,4–1,4 mm/rev, ap = 4–14 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
