Seco SCMT380932-RR97 Turning Insert TP0501
Available

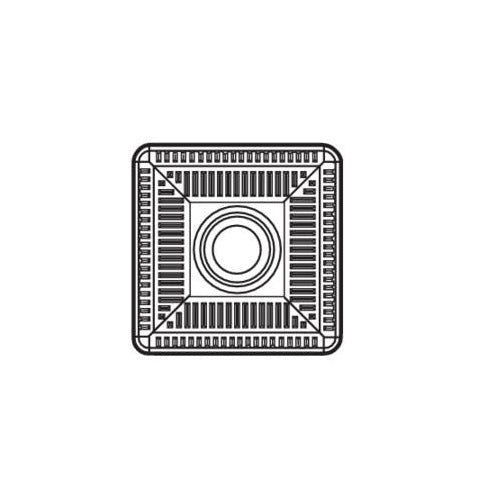

Genuine Seco square turning insert, Grade TP0501 with RR97 chipbreaker.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | RR97 |

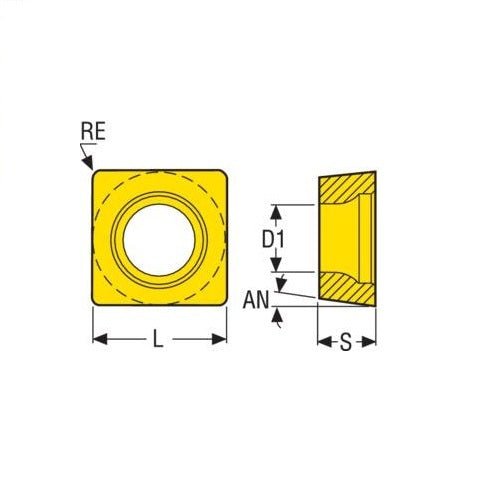

| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade TP0501
CVD Coated. Duratomic® grade. A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the RR97 Chipbreaker
Chipbreaker for large inserts intended for machining of steel with high depth of cut and large feed rates. The –RR97 geometry is stronger than the –RR96. Indicative machining range: f = 0,8–2,2 mm/rev, ap = 3,0–24,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
