Seco SCMT09T308-M5,TP2501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco square turning insert, Grade TP1501 with M5 chipbreaker. This is the SCMT insert style in grade TP1501 (Carbide CVD), with the M5 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | M5 |
| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade TP1501
Carbide CVD. CVD Coated. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M5 Chipbreaker
A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron. Combines high edge strength with comparatively low cutting forces. Safe action in interruptions and rough skin on parts also including boring. Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

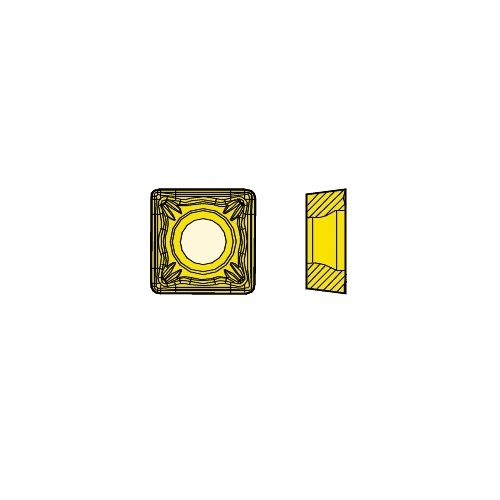

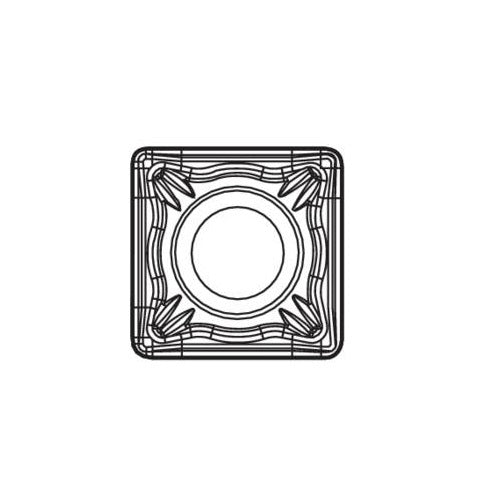

Seco Turning Insert SCMT Insert Style - M5 7° CVD Coated: SCMT09T308-M5,TP2501
SKU: A0116246 | Model: 03169504

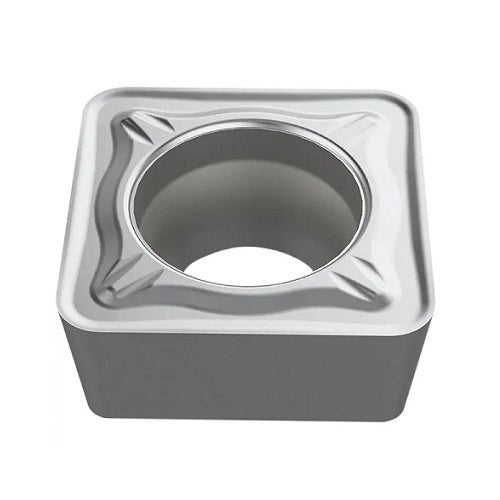

Seco Turning Insert S Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - M5 7° Grade TP2501 ± 0.13/± 0.05mm SCMT09T308-M5 Pack of 10
Turning Insert S Shape Code T Insert Type - M5 7° Grade TP2501 - 0.8mm Corner Radius

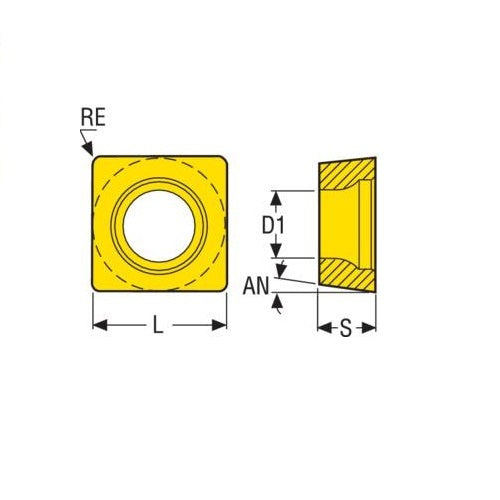

S shape code
T Insert Type.
7° insert side clearance angles.
0.8mm corner radius (RE).
TP2501 Insert Grade
CVD Coated.
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M5 Chipbreaker Programme
A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
Combines high edge strength with comparatively low cutting forces.
Safe action in interruptions and rough skin on parts also including boring.
Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
