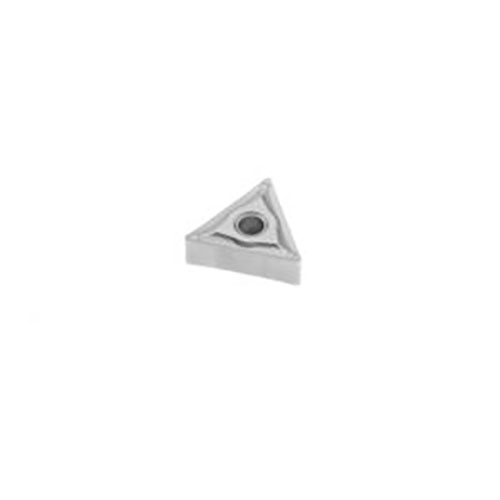

Seco Turning Insert T Shape Code 3.18 x 0.4 x 6.35mm G Insert Type - MF2 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMG110304-MF2,TP2501 10pcs

Turning Insert TNMG Insert Style - MF2 Grade TP2501 6.35mm Inscribed Circle Diameter (IC)

• T shape code.
• G insert type, with hole and chip breaker on both faces.
• TP2501 insert grade.
• 6.35mm inscribed circle diameter (IC).

TP2501 Insert Grade

• Duratomic grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

• First choice for finishing with negative inserts.
• Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
• Good capacity for medium rough machining.
• Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
