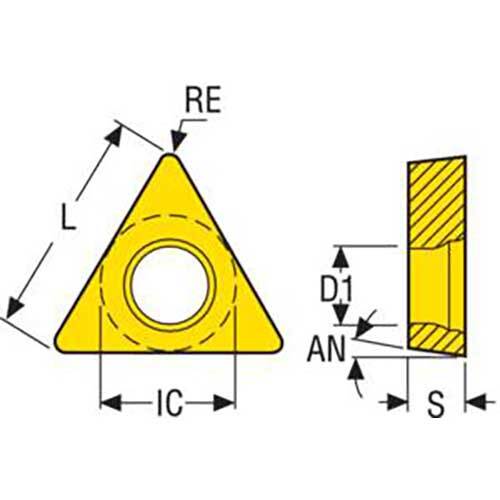

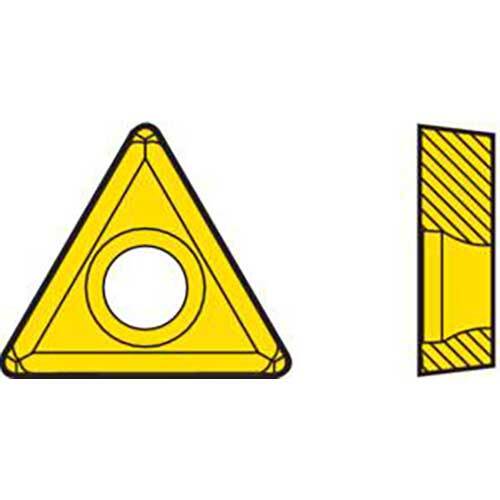

Turning Insert TCMT Insert Style - M3 7° Grade TM1501
- T shape code
- T Insert Type.
- 7° insert side clearance angles.
TM1501 Insert Grade
- Duratomic® grade.
- The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
- Complements in mixes of steel and stainless steel turning.
- Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M3 Chipbreaker Programme
- First choice for medium-rough machining and also the most versatile Seco chipbreaker.
- In most cases, it is the only chipbreaker needed.
- It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
- Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
- Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
